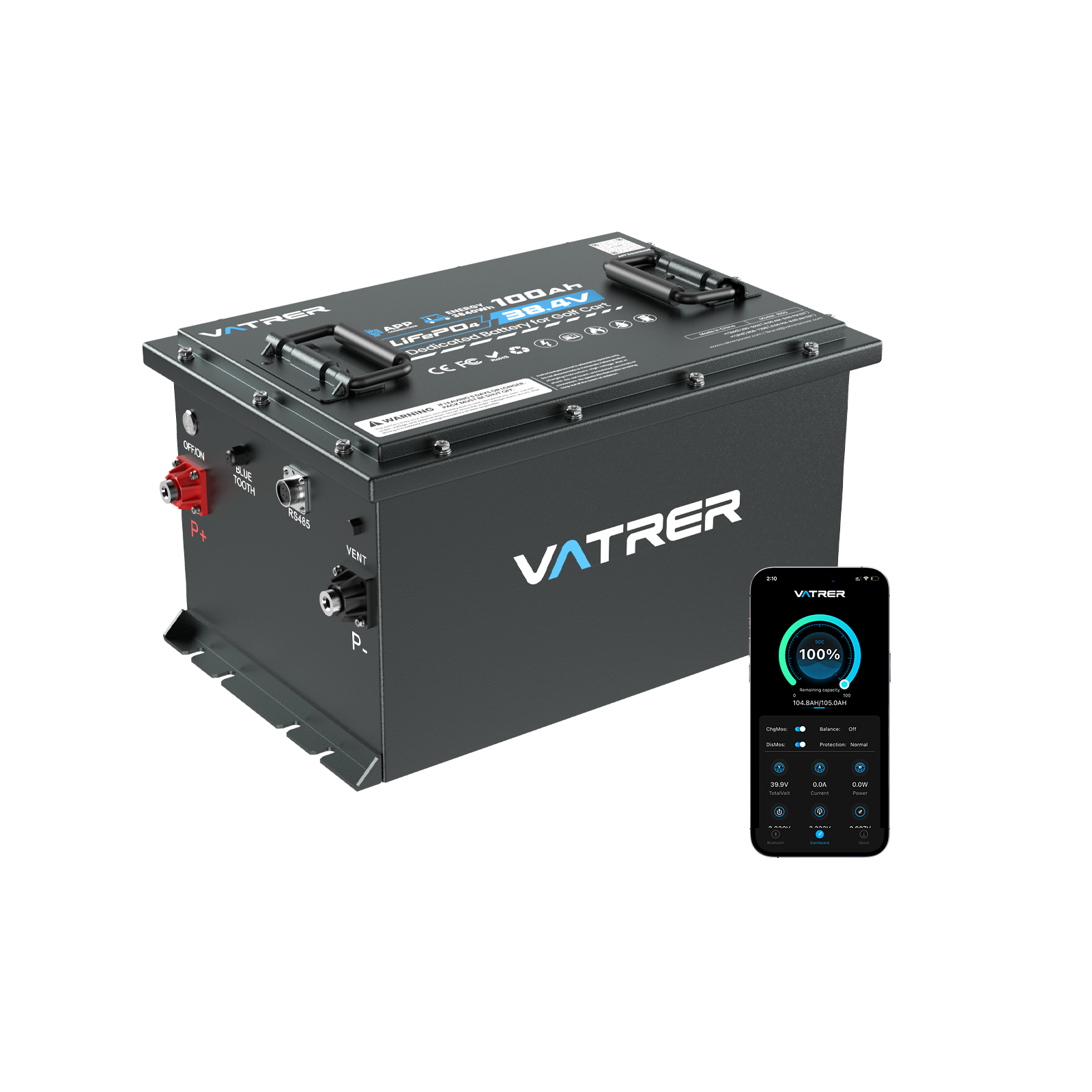

Vatrer 36 Volt 100AH Lithium Golf Cart Battery, 200A BMS, 4000+ Cycles, Max 7.68kW Power Output Lithium Battery
【High Energy Capacity and Power Output】The 38.4V golf cart battery has a capacity of 100Ah and a maximum power output of 7.68kW, making it suitable for powering golf carts across various terrains and for extended periods.
【Long Cycle Life】With over 4000 recharge cycles, this 36 volt golf cart battery provides exceptional longevity, significantly outperforming traditional lead-acid batteries, which typically last between 300 to 500 cycles.
【Built-In 200A BMS】The integrated 200A Battery Management System protects against overcharging, over-discharging, over-current, and extreme temperature conditions, thereby enhancing both safety and durability.
【Lightweight Design】Being approximately 50% lighter than equivalent lead-acid golf cart batteries, this battery's installation and handling are significantly easier, thus improving the overall user experience.
【Real-Time Monitoring】It includes a 2.8-inch touchscreen LCD and is compatible with a mobile app for real-time monitoring of battery status, which promotes user convenience and efficient management.
【Fast Charging】It comes with a 43.8V 25A charger that ensures quick and efficient charging, reducing downtime and enhancing availability.
【Extended Warranty and Support】The battery is offered with a 10-year warranty, ensuring long-term reliability and enhancing customer satisfaction.
【Tax-Free and Free Shipping in the US】This adds further value by providing cost savings through tax-free purchases and free shipping within the US.
Exclusion of Hawaii (HI), Alaska (AK), and Puerto Rico (PR)
Runtime Calculation
Safety Certifications
Specification | Value |
---|---|
LiFePO4 Battery | 38.4V 100Ah |
Nominal Voltage | 38.4V |
Charge Voltage | 43.8V |
Weight | 36KG / 79.37 lbs |
Energy | 3840Wh |
Max Continuous Charging Current | 100A |
Max Continuous Discharging Current | 200A (Peak 400A 35s) |
Recommend Charge Current | 20A~50A |
Max Load / Inverter Power | 7680W |
Discharge Cut-off Voltage | 30V(2.5V/Cell) |
Operating Temperature Range |
Charge: 0°C to 55°C (32°F to 131°F) Discharge: -20°C to 60°C (-4°F to 140°F) Storage: ≤1 month:-20~45°C (-4°F~113°F), >1 month:0~35°C (32F~95°F) |
Waterproof Class | IP67 |
Dimension | 425*292*244 mm / 16.73*11.50*9.61 inch |
Cycle Life | ≥4000 Cycles |
Safety Features | BMS, Over Charge/Discharge, Low/High Temp Cut-off, Over Current, Short Circuit |
Accessories | 1x38.4V 105Ah Golf Cart Battery, 1x 43.8V 25A LiFePO4 Charger, 1x2.8in LCD Screen, Communication Cables, 2*M8 Terminals, 2*Caps, 1*Manual |
The connections on our 36V battery are crimped and have a very good internal construction. They are secured with nuts to the terminals for both positive and negative connections. The charger connects to the same lug with the same positive and negative terminals.
The golf cart battery has a continuous discharge current of up to 200A with a peak discharge current of 400A for a duration of 35 seconds.
To set up Bluetooth connectivity and monitor the charging status of your 36 volt lithium golf cart battery, please follow these steps:
- Search for the "xiaoxiang" app on your smartphone and install the xiaoxiangelectric App.
- Open the app and allow it to access Bluetooth on your device. You can choose to register an account or use guest mode to proceed.
- Once inside the app, you will find detailed instructions on how to connect your battery via Bluetooth and monitor its charging status.
Additionally, the charger will have a green light that flashes to indicate that it is charging. You can also check the display on the charger, which will show the charging current.
While we do not provide a specific matching mounting bracket for the golf cart, we include some screws with openings on the bottom of the battery. These screws can be used to securely hold the battery in place during installation.
The battery comes with a 43.8V 25A special charger included, so you do not need to purchase a new charger separately. This charger is specifically designed to properly charge the 38.4V 100Ah battery.
For a 36-volt golf cart, if you choose to use a Vatrer brand lithium battery, you only need one battery. Vatrer batteries are designed with an integration of 12 EVE Lithium Iron Phosphate cells, which manage the voltage differential between cells internally, avoiding the complexities and potential issues associated with connecting multiple batteries in series or parallel. This design not only simplifies installation but also enhances the system's reliability and efficiency, significantly easing maintenance efforts. Thus, for your 36-volt golf cart, a single Vatrer lithium battery is sufficient to meet your needs.
The battery comes with a 10-year warranty, covering defects in materials and workmanship.
While primarily designed for golf carts, its high capacity and power output make it suitable for other applications that require similar power needs. However, it's important to check compatibility with other devices.
Yes, technical support is available to assist with any issues or questions regarding the battery's use and maintenance.
The lifespan of this 36 volt lithium battery can vary based on several factors including usage patterns, maintenance, and environmental conditions.
- Average Lifespan: This battery can last over 10 years with proper care and usage. This assumes that the battery is regularly charged and kept in optimal conditions, avoiding extreme temperatures and deep discharges.
- Range per Charge: On a single charge, this battery can typically power a golf cart for up to 50 miles. This range can vary slightly depending on factors such as the weight of the vehicle, terrain, and driving style.
- Cycle Life: This battery often have a cycle life of over 4000 cycles. A cycle is counted every time the battery is discharged and then recharged back to full capacity. A higher cycle life indicates a longer service life under normal conditions.
- Ideal for Golf Carts: Given its long lifespan, significant range per charge, and extensive cycle life, this battery is an excellent choice for golf carts. It offers a reliable power source that can handle frequent use typical in golf course environments.
These characteristics make this 36 volt lithium battery a robust and efficient option for powering golf carts, ensuring both reliability and performance over an extended period.
