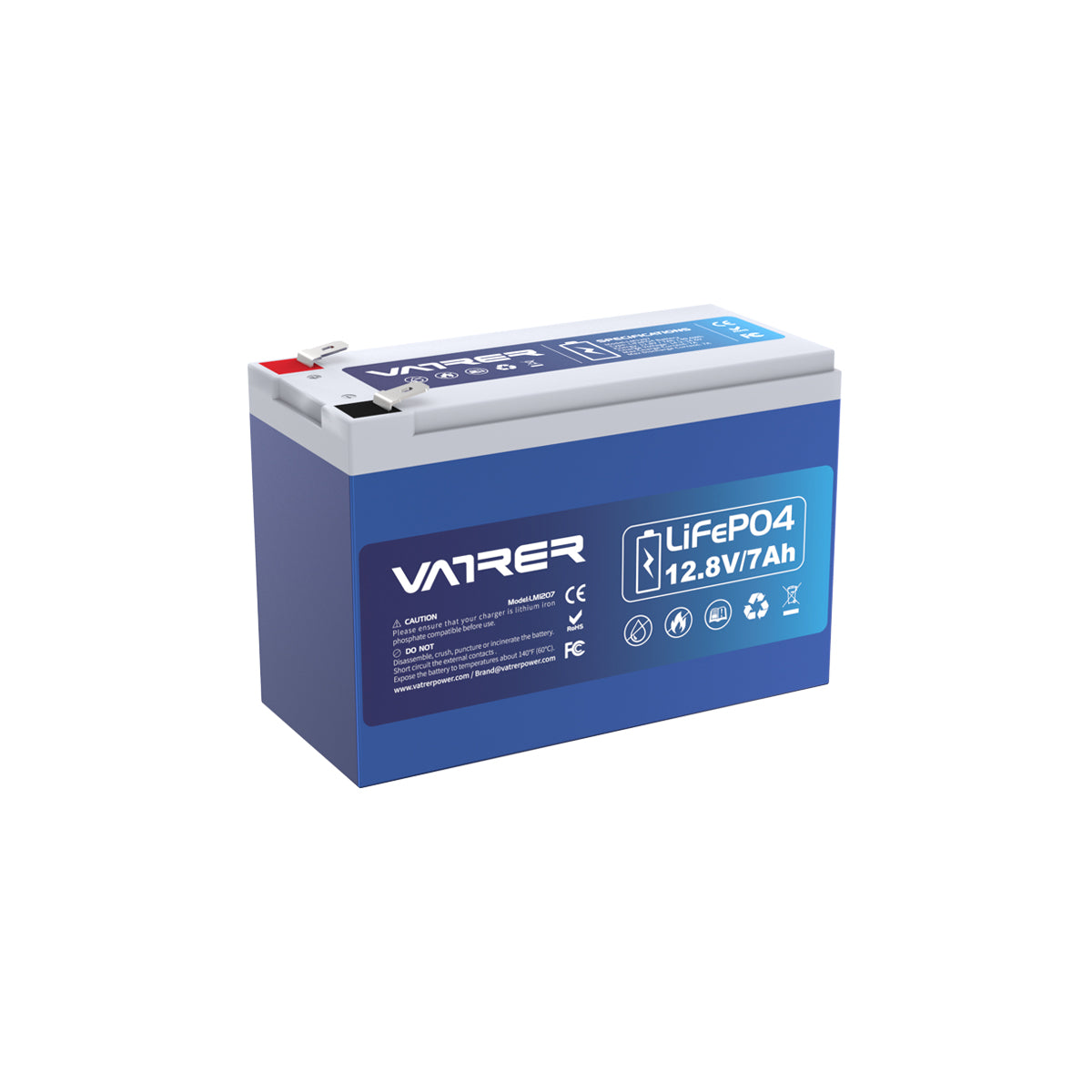

Vatrer 12V 7Ah LiFePO4 Deep Cycle Fish Finder Battery
Vatrer deep cycle LiFePO4 battery has built-in BMS to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate. With high temp cutting off prevents charging over 167 °F (75°C).
Manufactured by Automotive Grade LiFePO4 Cells with higher energy density, no memory effect, more stable performance and greater power. Excellent cycle performance, fast charging and discharging, charging efficiency up to 100%, and high output power.
This fish finder battery provides 5000+ cycles compared to 300~500 cycles in lead acid battery. The service life of LiFePO4 batteries is 8 to 10 times than the standard lead-acid batteries.
The stable Lithium Iron Phosphate chemical structure makes LiFePO4 not burn or explode even at high temperature, short circuit, impact and drop. Highest-level safety based on UL Testing Certificate for the cell inside the battery.
Exclusion of Hawaii (HI), Alaska (AK), and Puerto Rico (PR)
Runtime Calculation
Safety Certifications
Warranty Policy
We provide a five-year(One year warranty if used on power equipment such as golf carts, trolling machines, kayaks, etc.) warranty for all batteries.Our five-year bat-tery warranty includes the following privileges, if used correctly ac-cording to the manual :
We will assist in analyzing the customer's problem within 24 hours, help solve the problem, restore battery usage, andintroduce the best use method.
lf the problem cannot be resolved, we will send a new bat-tery to replace the defective battery.And the defective bat-tery needs to be returned to our US warehouse, and inspect-ed and tested by our technical team.
Application Scenario
- RV,Camper, Trailer, Caravan, Camping Truck, Bus etc.
- Solar System+ Wind Power System
- Home Energy System
- Boat & Fishing
- Wireless Lawn Movers, Vacuum Cleaner & Washing Machine
- Portable Video Camera & Portable Personal Computer
- Car Audio System
- Light Equipment
- Emergency Lighting EquipmentFire Alarm & Security Systems
- Electric Equipment & Telemeter Equipment Portable
- Toys & Consumer Electronics
Specification | Value |
---|---|
LiFePO4 Battery | 12.8V 7Ah |
Nominal Voltage | 12.8V |
Charge Voltage | 14.2V-14.6V |
Weight | 0.95KG/2.09LB |
Energy | 89.6Wh |
Max Continuous Charging Current | 7A |
Max Continuous Discharging Current | 7A |
Recommend Charge Current | 1.4A (0.2C) |
Max Load / Inverter Power | 89.6W |
Operating Temperature Range | Charge: 0°C to 50℃ (32°F to 122°F) Discharge: -20°C to 60℃ (-4°F to 140°F) Storage: -10°C to 50°C (-14°F to 122°F) |
Waterproof Class | IP65 |
Terminal Type | F2 |

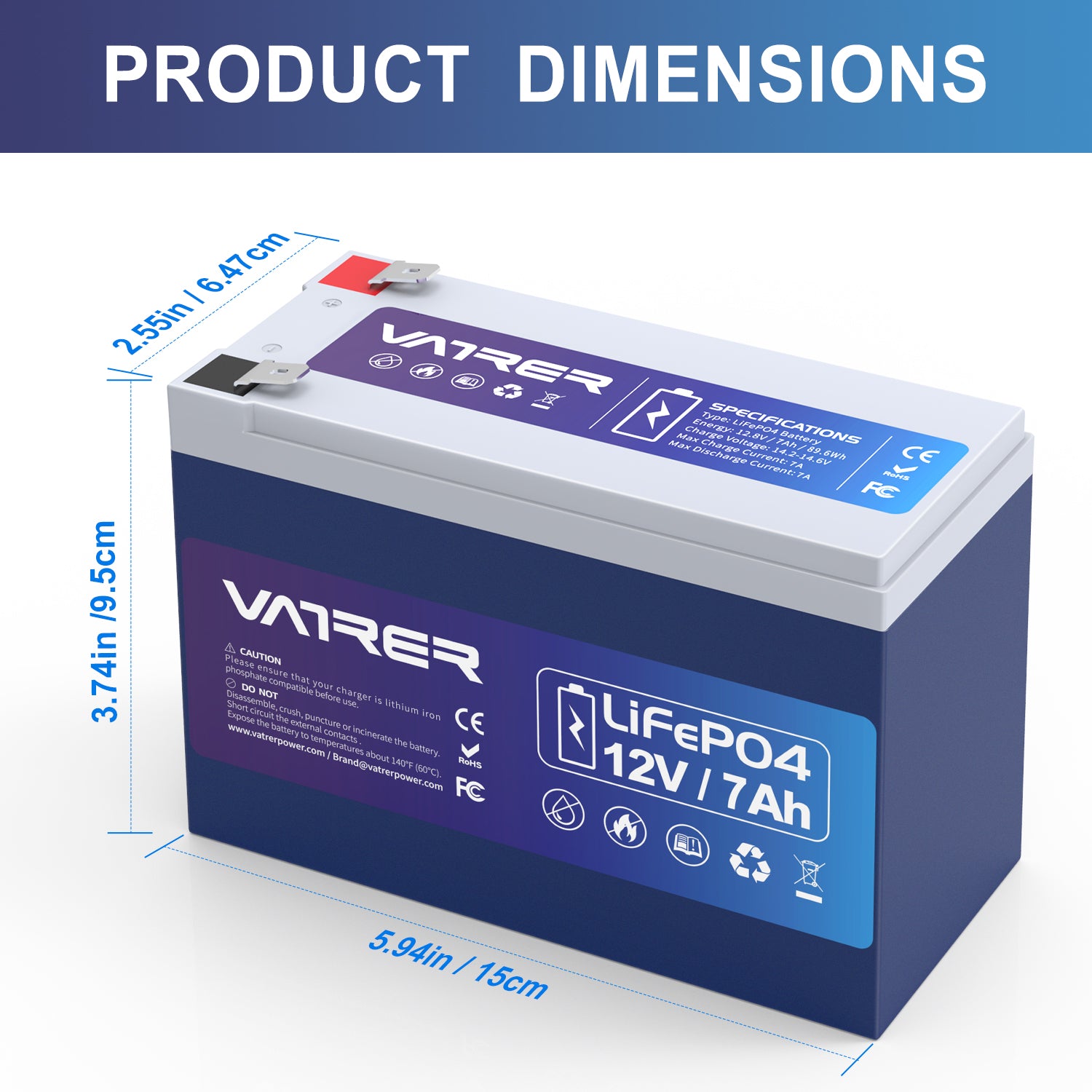

Dimension | 151×65×95 mm (5.94*2.55*3.74 inch) |
Cycle Life | ≥5000 Cycles |

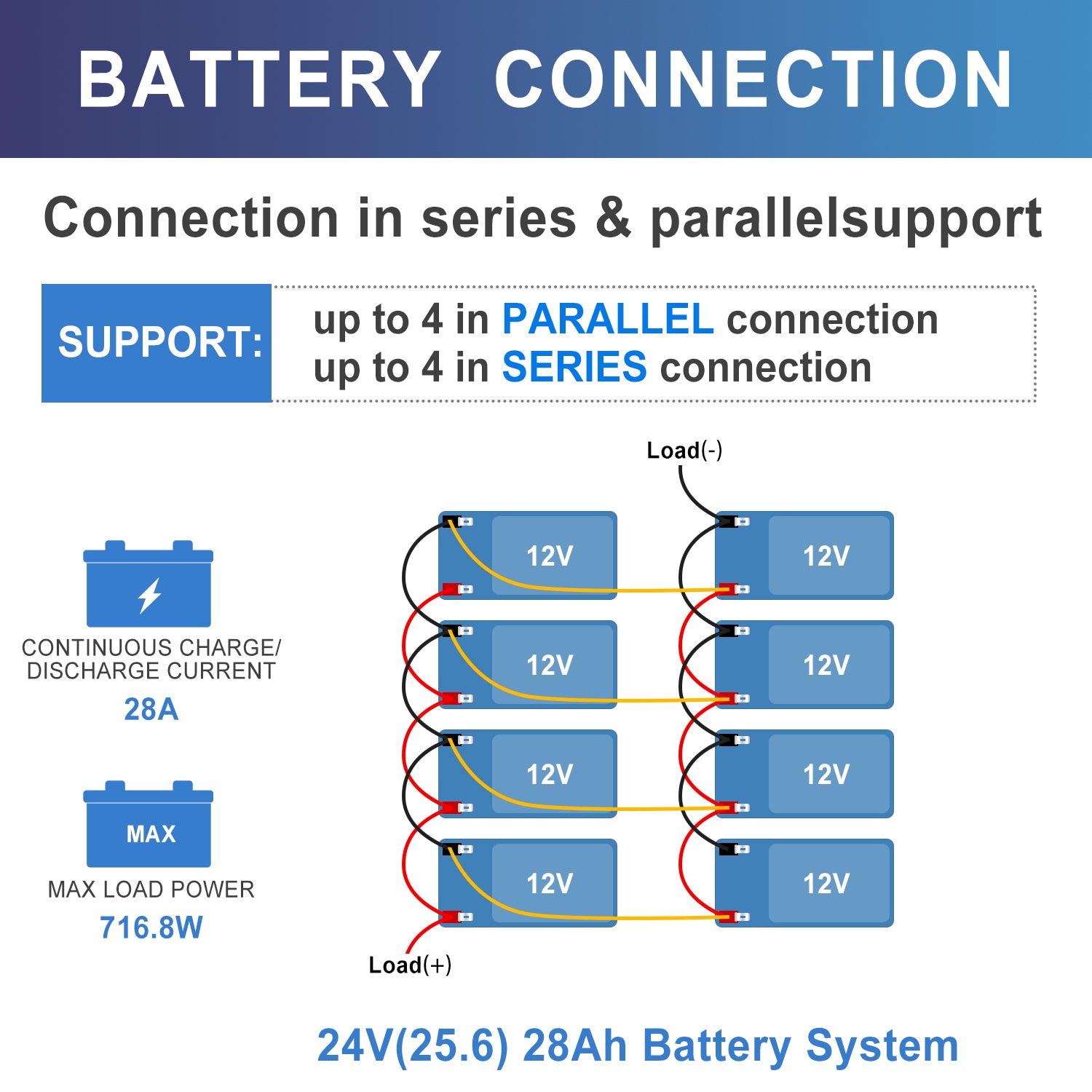

Connections in Series/Parallel | 4 in Series, and no more than 10PCS in Parallel |
Yes, of course! If you purchase our battery with low temperature cutoff, our BMS has a low temperature protection cut-off function that protects your battery from low temperature damage and extends battery life.
We recommend using a lithium iron phosphate 4-string (14.6V) charger to charge the battery. Additionally, you have two other options:
Scheme 2: You can use photovoltaic solar panels to charge the battery through MPPT.
Scheme 3: You can use an inverter with a built-in AC to DC charging function to charge the battery pack.

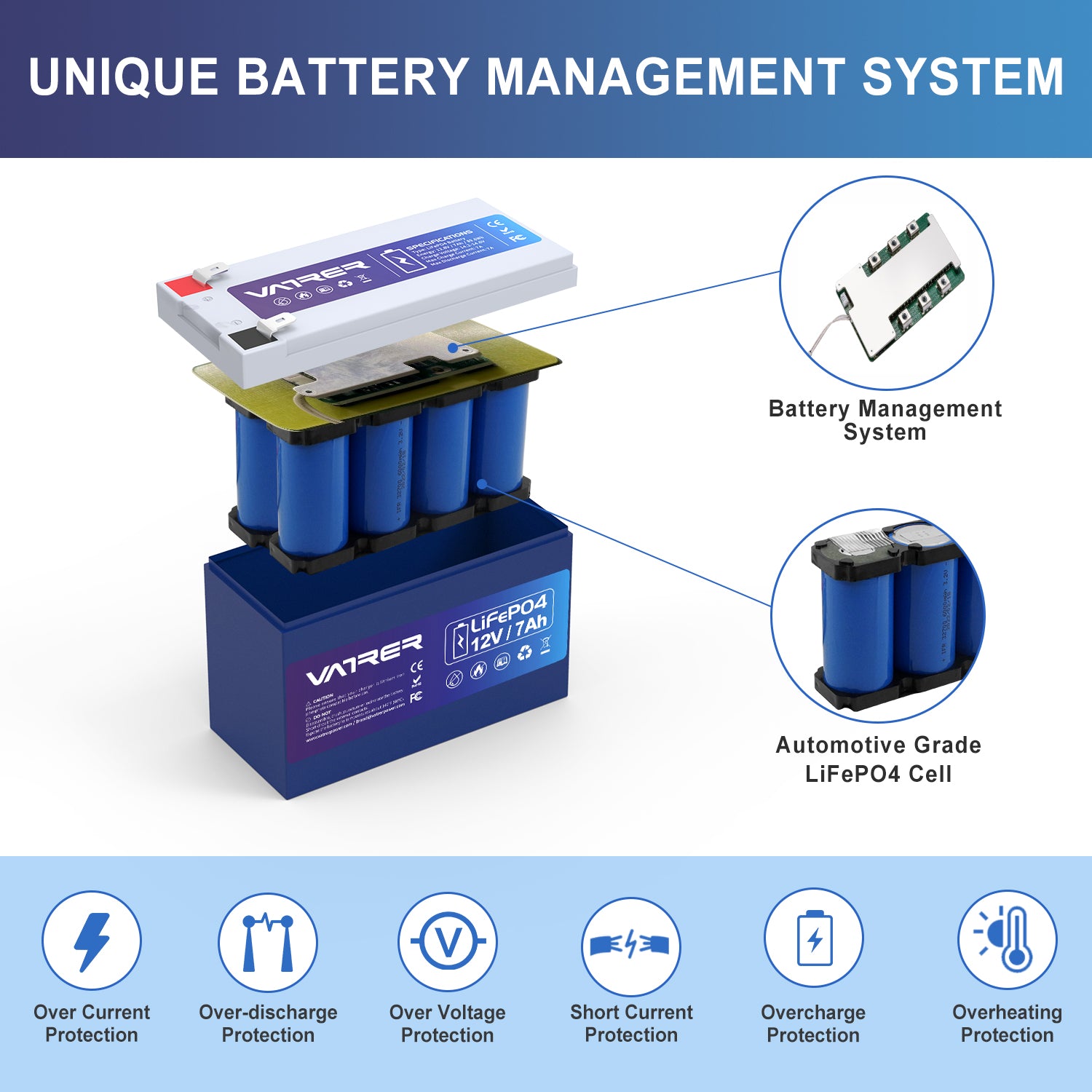

A BMS (Battery Management System) is a system that protects the battery and ensures safe operation. It monitors conditions such as low or high voltage, low or high temperatures, and shorts in the system. The BMS shuts off the battery to protect the lithium-ion cells and the user from unsafe operating conditions. It also helps balance the cells and maintains the quality and efficiency of the battery pack.
Our LiFePO4 lithium iron batteries provide 5000+ cycles compared to 300-500 cycles in lead acid batteries. The service life of LiFePO4 batteries is 8 to 10 times longer than standard lead-acid batteries.
Our LiFePO4 batteries are manufactured using Automotive Grade LiFePO4 Cells, which have higher energy density, stability, and power. The stable Lithium Iron Phosphate chemical structure ensures that LiFePO4 batteries do not burn or explode even under high temperature, short circuit, impact, or drop conditions. They have undergone UL Testing and are certified for safety. Our batteries do not contain heavy metals or rare metals, making them environmentally friendly. The built-in Battery Management System (BMS) provides protection against overcharge, deep discharge, overload, overheating, and short circuits. The BMS also has a high temperature disconnect function, automatically disconnecting the battery when the internal temperature reaches 75°C / 167°F. Additionally, the batteries have overcharge and overdischarge protection functions.
We apologize, but our batteries cannot be used to jump-start a vehicle. However, they can be used as a power supply for automobiles. You can recharge the car via a Jackery power supply cord, which is available for purchase separately.
