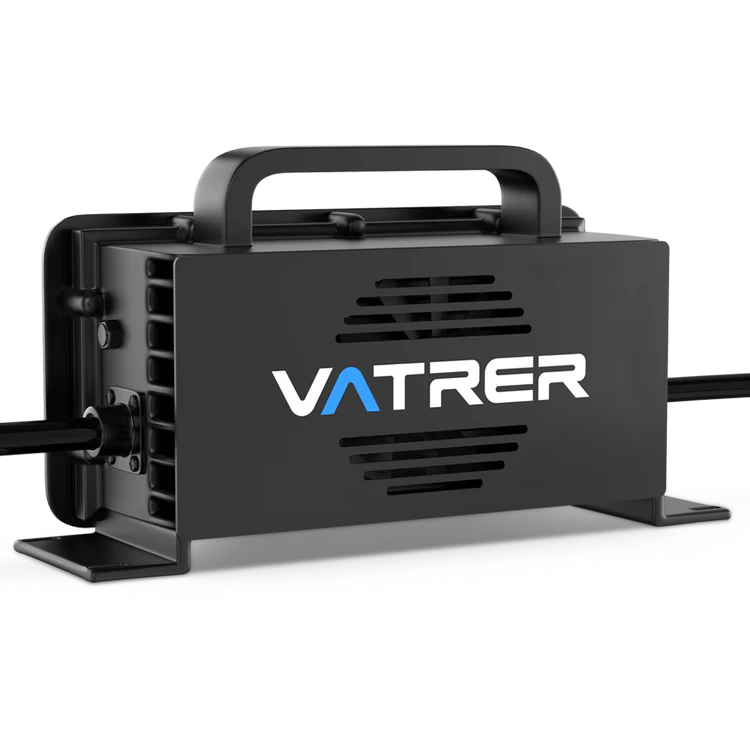

58.4V 20A Smart AC-DC 48V Golf Cart Lithium Battery Charger CA
Safety Certifications

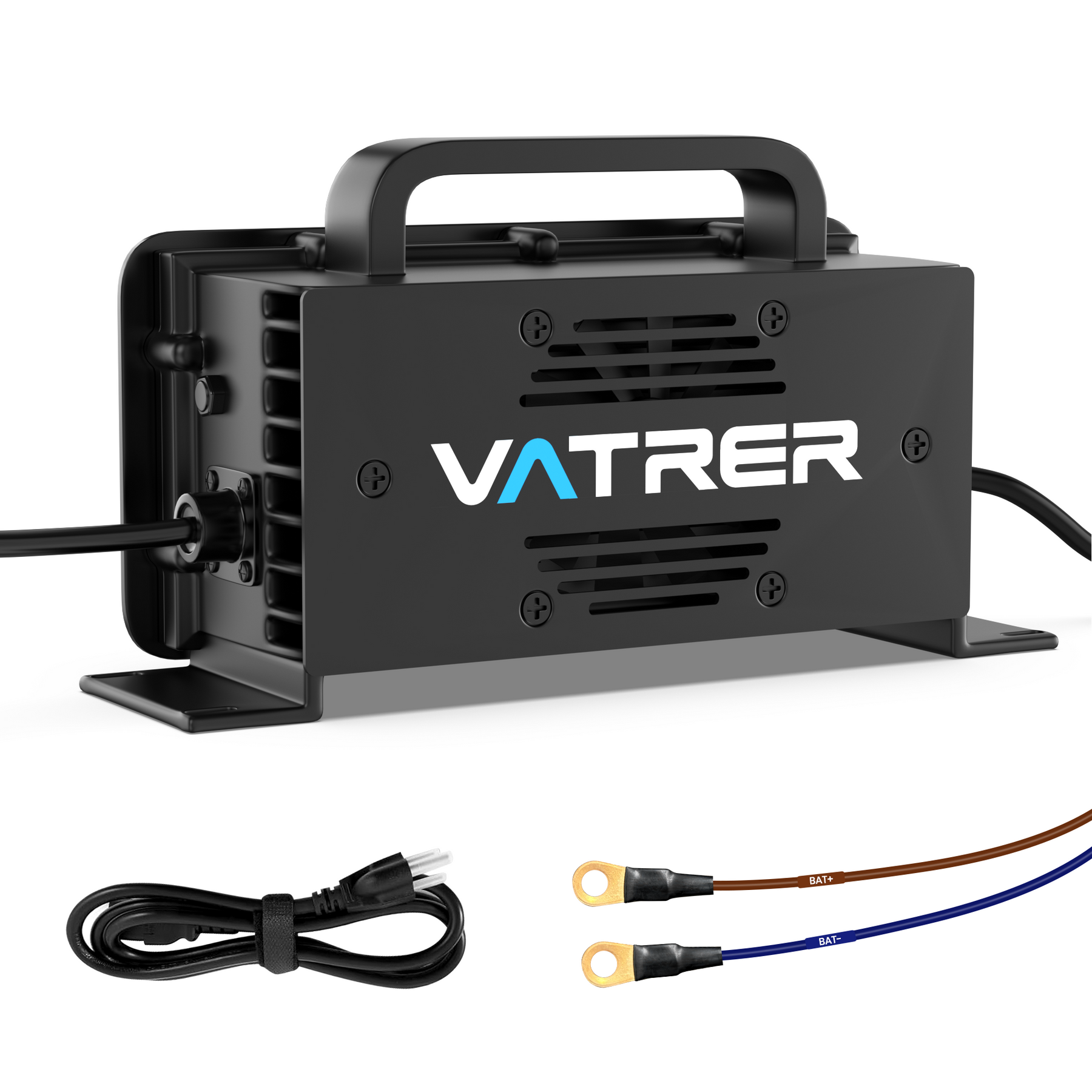

Product Overview
The VATRER E15-58.4V20A is a high-quality, economical battery charger designed for lithium batteries. It operates on an AC input voltage range of 90-260V and features a three-step charging program: constant current, constant voltage, and float charging.
Specifications
-
DC Output:
- Maximum Voltage: 58.4V
- Maximum Current: 20A
- Maximum Power: 1160W
-
AC Input:
- Nominal Voltage: 100-240V
- Frequency: 50/60Hz
- Maximum Current: 13A
-
Mechanical:
- Dimensions: 28.1 x 14.5 x 8 cm
- Weight: 7 lbs (3.2 kg)
-
Environmental:
- Operating Temperature: -20℃ to +65℃
- Storage Temperature: -40℃ to +85℃
- Humidity: 5%-95%.

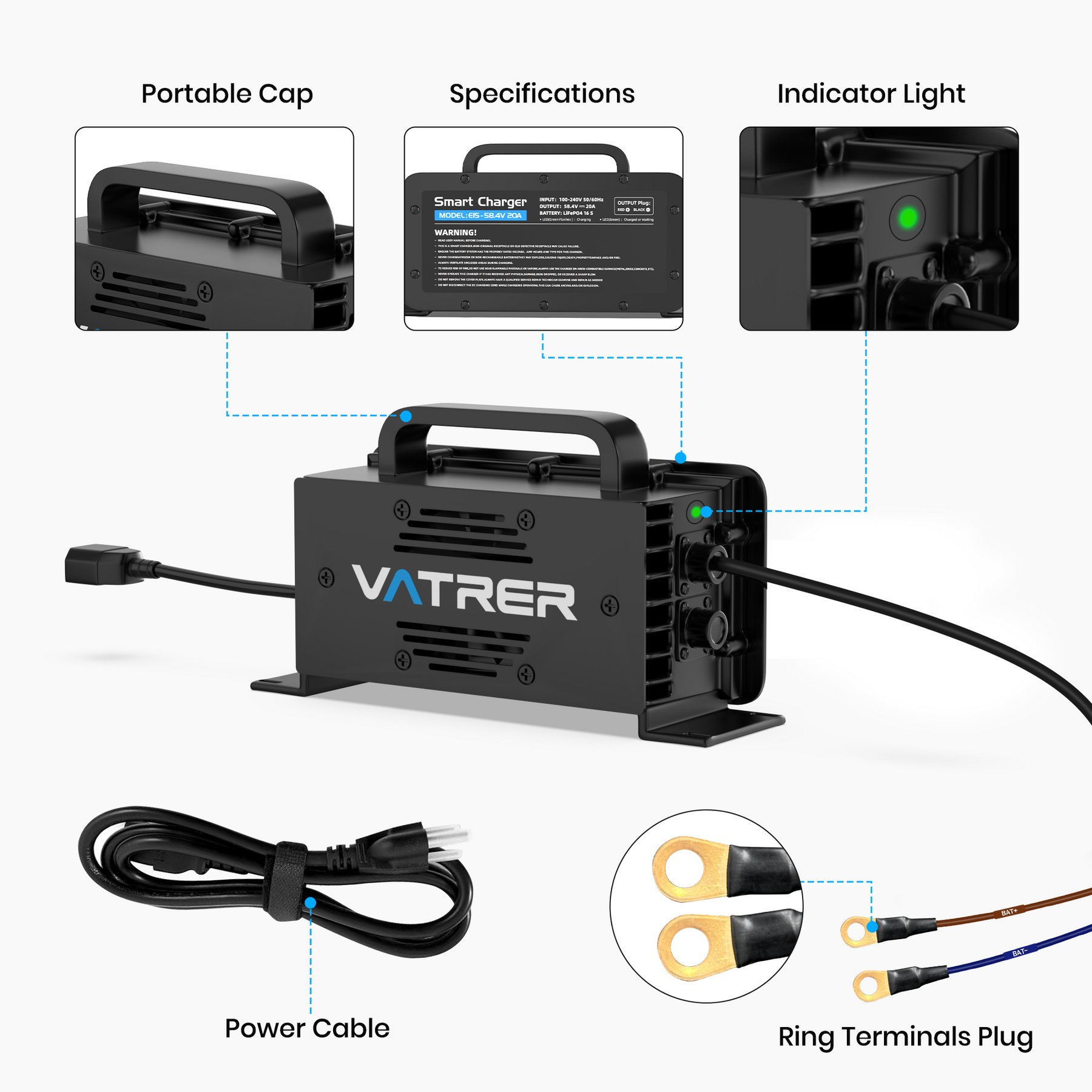

LED Status Indicators
-
Solid Green: Charger ready or charging complete.
-
Green Blinking: Charger is currently charging.
-
Red Blinking Quickly: Input power failure.
-
Alternating Red and Green Blinking: Short-circuit or reversed battery connections.
-
Overheating Alarm: Red blinks 2 times, with intervals.
-
Over-current Alarm: Red blinks 3 times, with intervals.
-
Over-voltage Alarm: Red blinks 4 times, with intervals.
Safety Warnings
-
Do not leave the charger unattended while connected to power.
-
Ensure the charger is only connected to the specified AC voltage.
-
Avoid placing the charger on flammable surfaces or near flammable materials.
-
Maintain proper airflow around the charger and avoid short-circuiting
Specifications
| Item | Details |
|---|---|
| DC Output | |
| Maximum DC Output Voltage | 58.4V |
| Maximum DC Output Current | 20A |
| Maximum DC Output Power | 1160W |
| Battery Type | Lithium |
| AC Input | |
| AC Input Voltage Range | 90-260VAC |
| Nominal AC Input Voltage | 100-240VAC |
| Nominal AC Input Frequency | 50/60Hz |
| Maximum AC Input Current | 13A |
| Nominal AC Input Current | 10A |
| Power Factor | >0.9 |
Mechanical and Environmental Specifications
| Item | Details |
|---|---|
| Mechanical | |

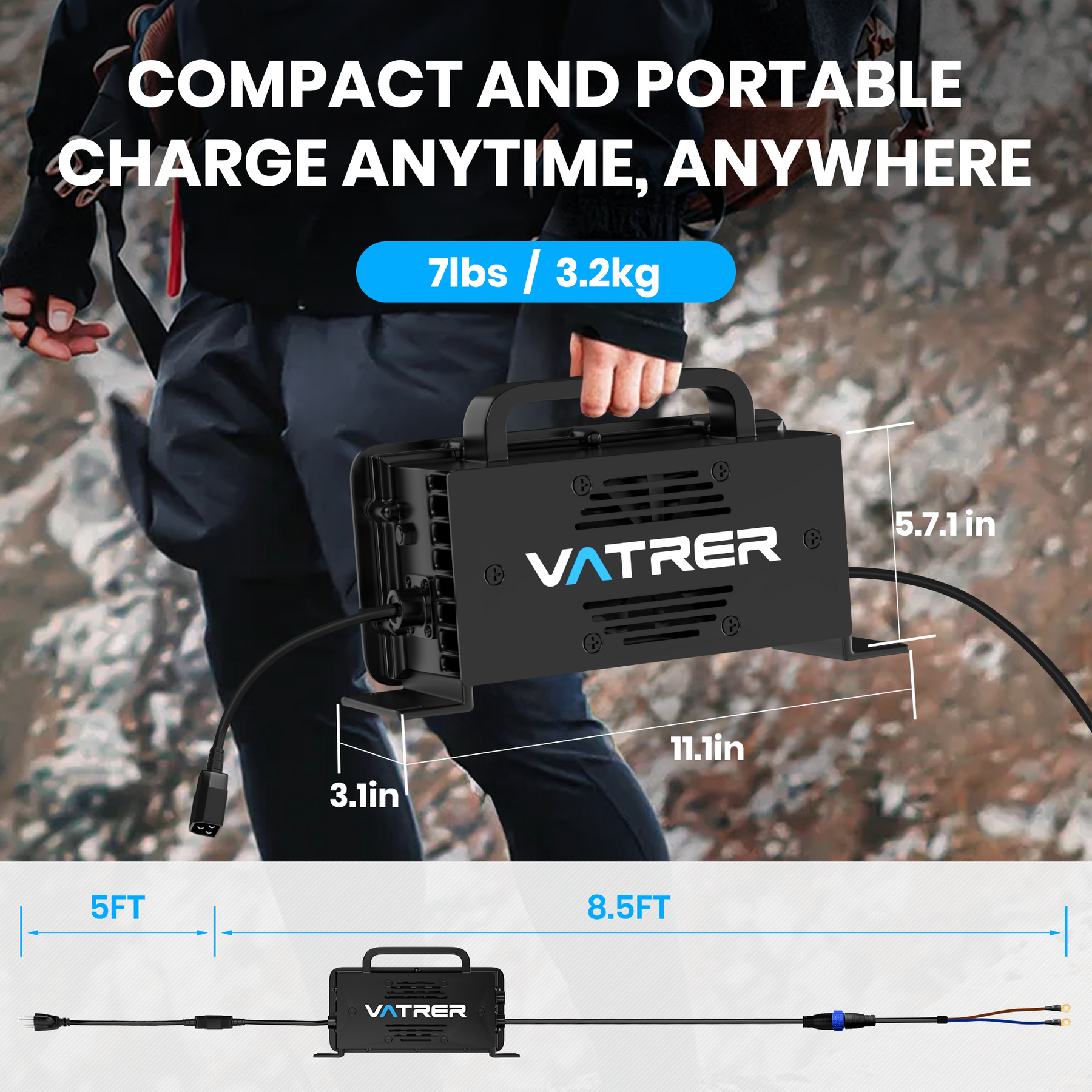

| Dimensions | 28.1×14.5x8cm (11.1×5.7x3.1") |
| Weight | 7lbs (3.2kg) |

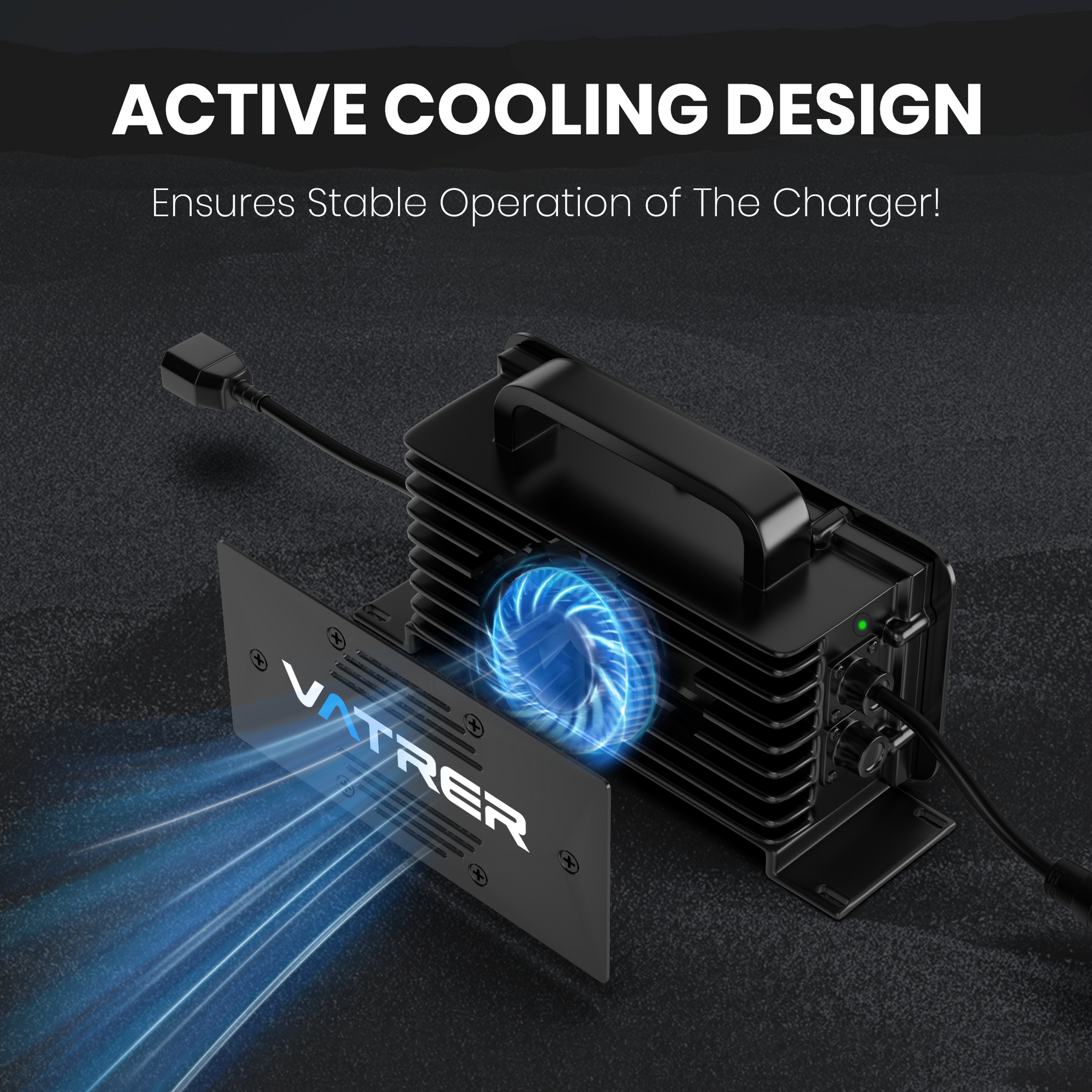

| Cooling | Active cooling with fan |
| Environmental | |
| Enclosure Rating | IP66 |
| Humidity Range | 5%-95% |
| Operating Temperature | -20℃ to +65℃ (-4ºF to 149°F), Derated at >40°C(104°F) |
| Storage Temperature | -40℃ to +85℃ (-40°F to 185°F) |
LED Status Indicators
| LED Status Indicator | Description |
|---|---|
| LED solid green | The charger is ready to charge, or charging is complete. |
| LED Green blinking | The charger is charging. |
| Red light blinking quickly | Input power failure. |
| Red and green blinking alternately | Output is short-circuited or battery polarity is reversed. |
| Red light blinks 2 times, interval 1 second | Charger temperature overheating alarm. |
| Red light blinks 3 times, interval 1 second | Output over-current alarm. |
| Red light blinks 4 times, interval 1 second | Output over-voltage alarm. |
