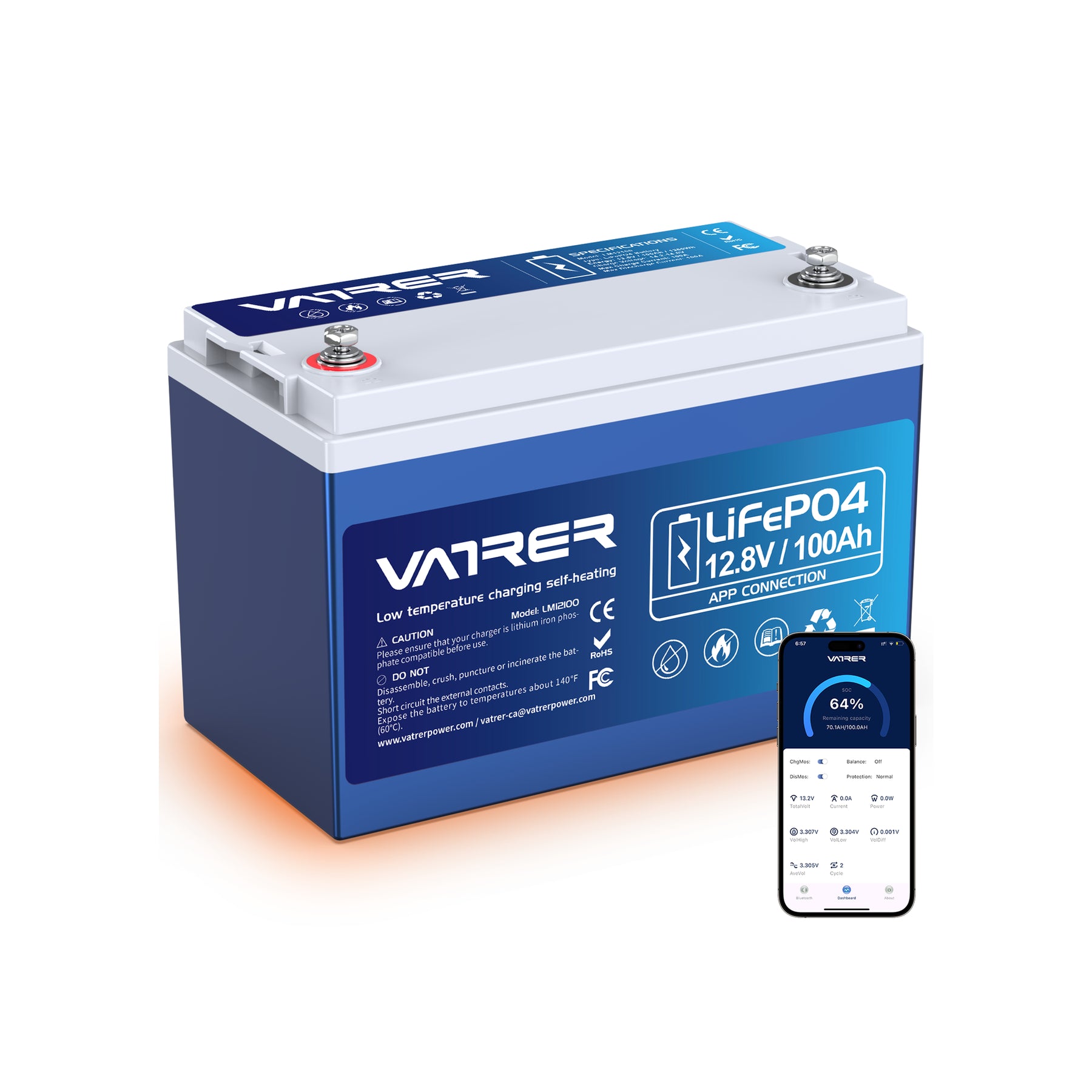

Vatrer 12V 100AH LiFePO4 Self-Heating Lithium Battery with Bluetooth CA

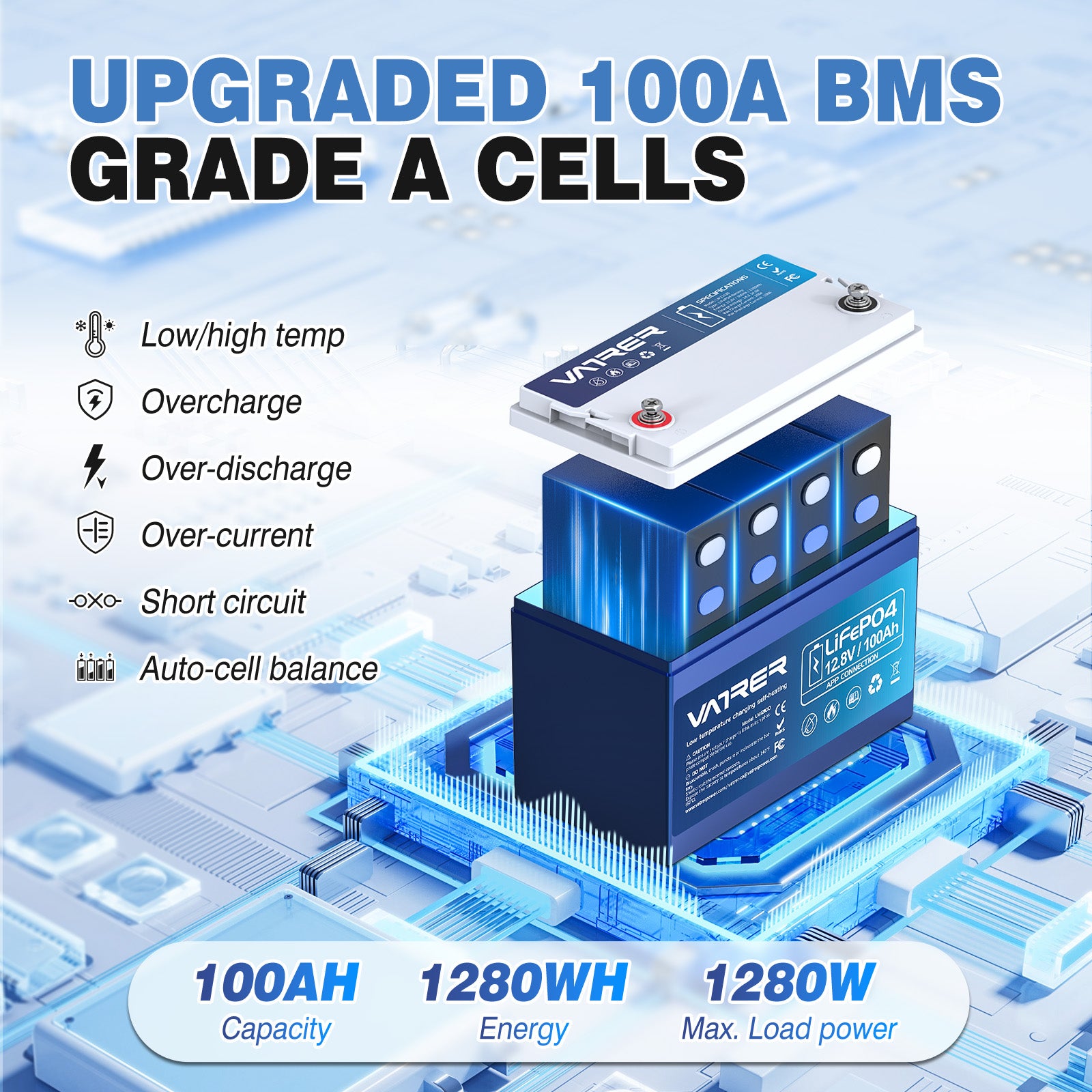

The Vatrer deep cycle LiFePO4 battery features a built-in BMS for comprehensive protection against overcharge, over-discharge, over-current, and short circuits. It includes high-temperature cutoff (above 167 °F or 75°C) and low-temperature protection, ensuring safety and reliability in various conditions. The battery is ready to use immediately after charging.
This lithium battery is crafted from Automotive Grade LiFePO4 Cells, providing higher energy density, stable performance, and more power. It boasts excellent cycle performance, fast charging and discharging capabilities, with a charging efficiency of up to 100%. Additionally, it supports IP65 waterproof rating and can be expanded up to 4 series & 4 parallel connections, making it ideal for electric energy storage.
The LiFePO4 battery offers over 5000 cycles, significantly outperforming the 300-500 cycles typical of lead acid batteries.
It meets the highest safety standards as per UL Testing Certification for the cell inside the battery.
Thanks to its acid-free composition, the lithium-ion battery can be safely mounted in any position, making it ideal for use in marine, RV, campers, golf carts, and off-grid applications.
Runtime Calculation
Safety Certifications
Specification | Value |
---|---|
Battery Model | LiFePO4 Battery 12.8V 100Ah |
Nominal Voltage | 12.8V |
Capacity | 100Ah |
Charge Voltage | 14.2V-14.6V |
Weight | 11KG / 24.2LB |
Energy | 1280Wh |
Max Continuous Charging Current | 100A |
Max Continuous Discharging Current | 100A |
Recommended Charge Current | 20A (0.2C) |
Max Load/Inverter Power | 1280W |
Operating Temperature Range | Charge: -20°C~ 50°C(-4°F~ 122°F) Discharge: -20°C to 60°C (-4°F to 140°F) Storage: -10°C to 50°C (14°F to 122°F) Low temp cut off protection (Discharge): -20°C±4°C (-4°F±7.2°F) |
Waterproof Class | IP65 |
Terminal Type | M8 |
Dimensions | 329x172x214 mm / 12.95x6.77x8.42 inch |
Cycle Life | >=5000 Cycles |
Series/Parallel Connections | 4 in Series, and no more than 10PCS in Parallel |
Yes, indeed! Our LiFePO4 battery comes equipped with a BMS that includes low temperature protection cut-off functionality. This feature ensures that your battery remains safeguarded against any potential damage caused by extremely cold temperatures. The low temperature cut-off protection for charging is set at 0°C ± 4°C (32°F ± 7.2°F), while for discharging, it is set at -20°C ± 4°C (-4°F ± 7.2°F).
For optimal charging of our LiFePO4 battery, we recommend using a lithium iron phosphate 4-string (14.6V) charger. This specific charger is designed to provide the appropriate voltage and charging characteristics for LiFePO4 batteries. However, if you prefer alternative charging methods, you can also utilize photovoltaic solar panels with an MPPT charger or an inverter with a built-in AC to DC charging function.
The BMS, or Battery Management System, plays a crucial role in the operation and safety of the LiFePO4 battery. It is responsible for various functions, including protecting the battery and the user from hazardous conditions such as low or high voltage, low or high temperatures, and short circuits. The BMS also ensures that all the cells within the battery pack remain balanced, allowing for optimal performance and longevity. Additionally, our BMS features a charge balancing function that reduces the charging rate for cells that have reached their capacity, enabling other cells to catch up and maintain the overall balance of the battery pack.
Our LiFePO4 lithium iron phosphate batteries have an impressive lifespan, providing a minimum of 2000 cycles at 100% depth of discharge (DoD). In more practical terms, this translates to a service life that is 8 to 10 times longer than standard lead-acid batteries. With proper care and usage, these batteries can serve you reliably for an extended period.
Absolutely! Our LiFePO4 batteries are designed with safety as a top priority. They are manufactured using automotive-grade LiFePO4 cells, offering higher energy density and enhanced stability compared to other battery chemistries. These batteries exhibit excellent safety characteristics, even under challenging conditions such as high temperatures, short circuits, impacts, and drops. The stable chemical structure of LiFePO4 ensures that the batteries do not burn or explode. Furthermore, our batteries have obtained UL Testing Certificates, assuring the highest level of safety. They are also environmentally friendly, containing no heavy metals or rare metals. Additionally, the built-in Battery Management System (BMS) provides comprehensive protection against overcharge, deep discharge, overload, overheating, short circuits, and low self-discharge rate.
Regrettably, our LiFePO4 battery is not designed to be used for jump-starting vehicles. However, it can serve as a reliable power supply for automobiles. To recharge your car, you may connect it to the LiFePO4 battery using a Jackery power supply cord, which can be purchased separately.
