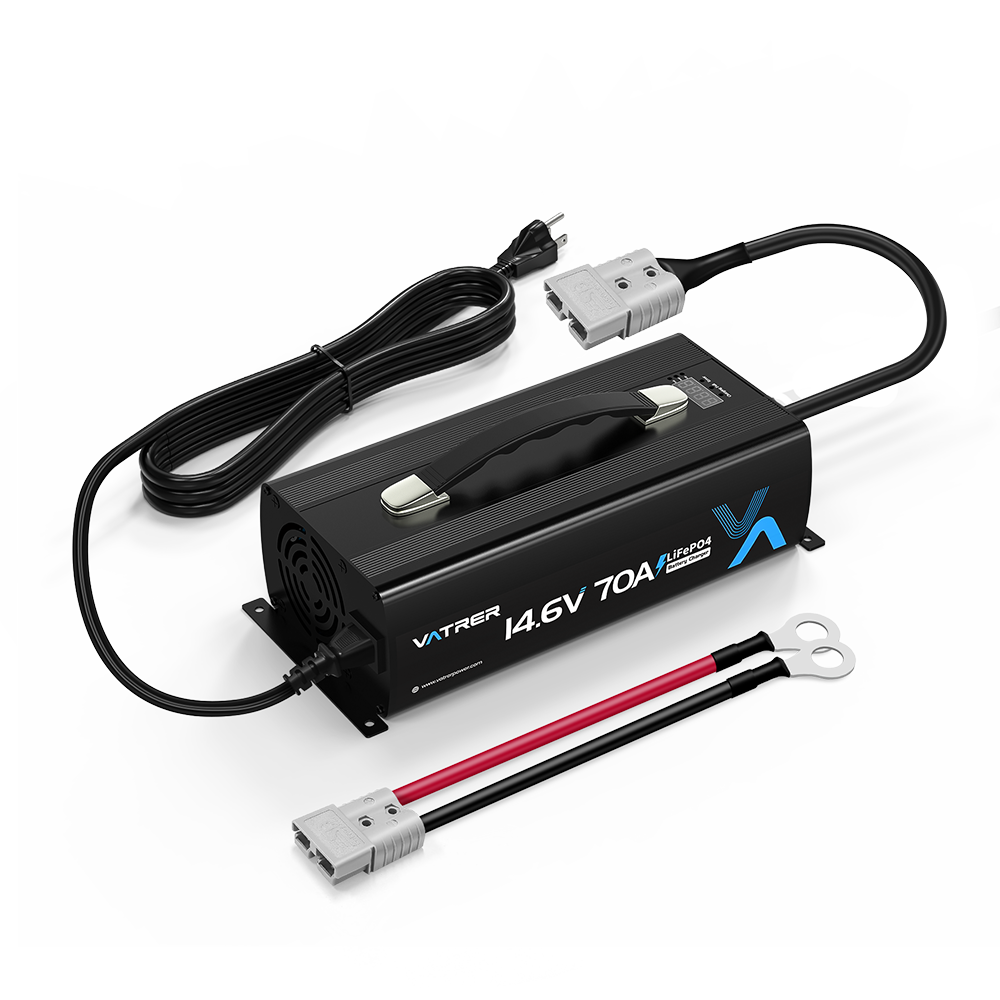

Vatrer 14.6V 70A Fast AC-DC 12V LiFePO4 Battery Charger EU
The charger utilizes a single chip microcomputer (MCU) controlled 3-stage intelligent charging technology, ensuring the battery is always in optimal electrochemical reaction condition to prolong its service life.

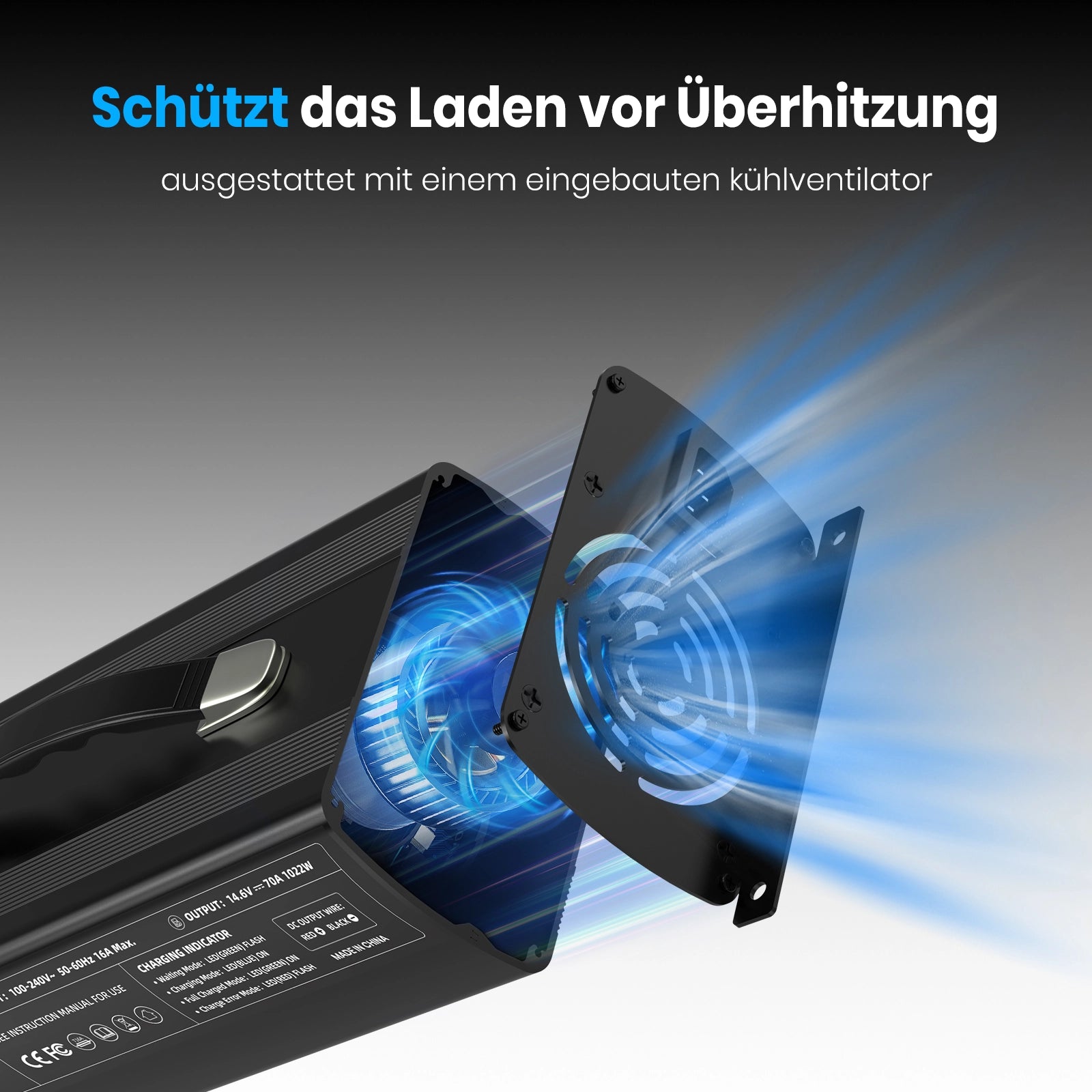

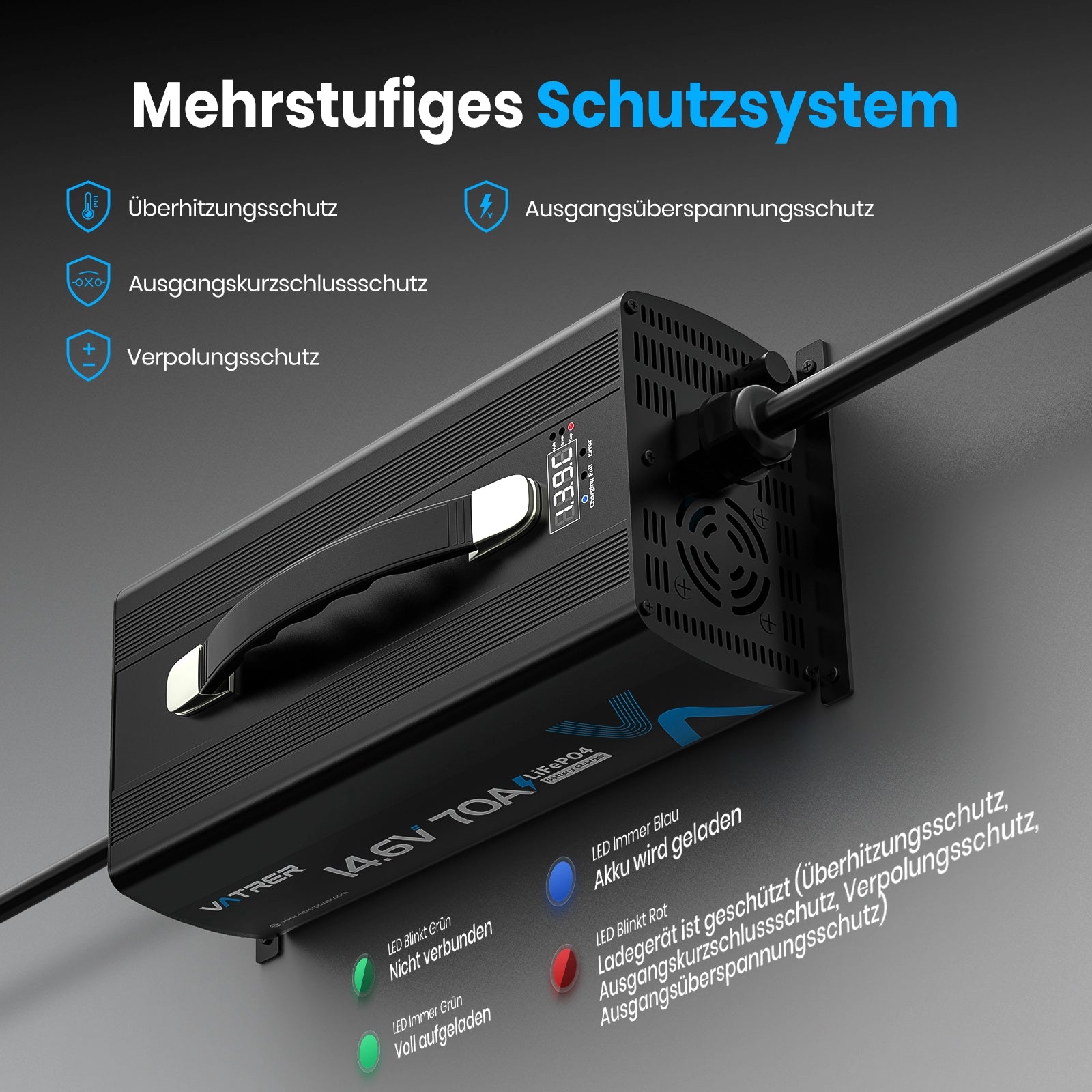

It is designed with a wide input voltage range and multiple protection features, including over-temperature, output short-circuit, reverse polarity, and output over-voltage protection, enhancing its reliability.
The charger is compact and portable due to its advanced high-frequency transformer LLC half-bridge resonant soft-switching power supply control technology, which also contributes to its high efficiency.
It is suitable for a wide range of applications, including charging lithium batteries for electric vehicles, bicycles, forklifts, and medical equipment, among others.
The LED indicator provides clear status updates: blue for charging, green for fully charged, and flashing red for protection alerts, ensuring user-friendly operation.
Safety Certifications
Parameter | Specification |
---|---|
Input Voltage Range | AC100V~240V, 50Hz-60Hz |
Maximum Input Current | 16A |
Output Voltage | 14.2-14.6Vdc |
Output Current | 70A |
Operating Temperature | -10°C to 40°C |
Storage Temperature | -40°C to 70°C |
Relative Humidity | 5% to 95% |
Atmospheric Pressure | 70KPa to 106KPa |

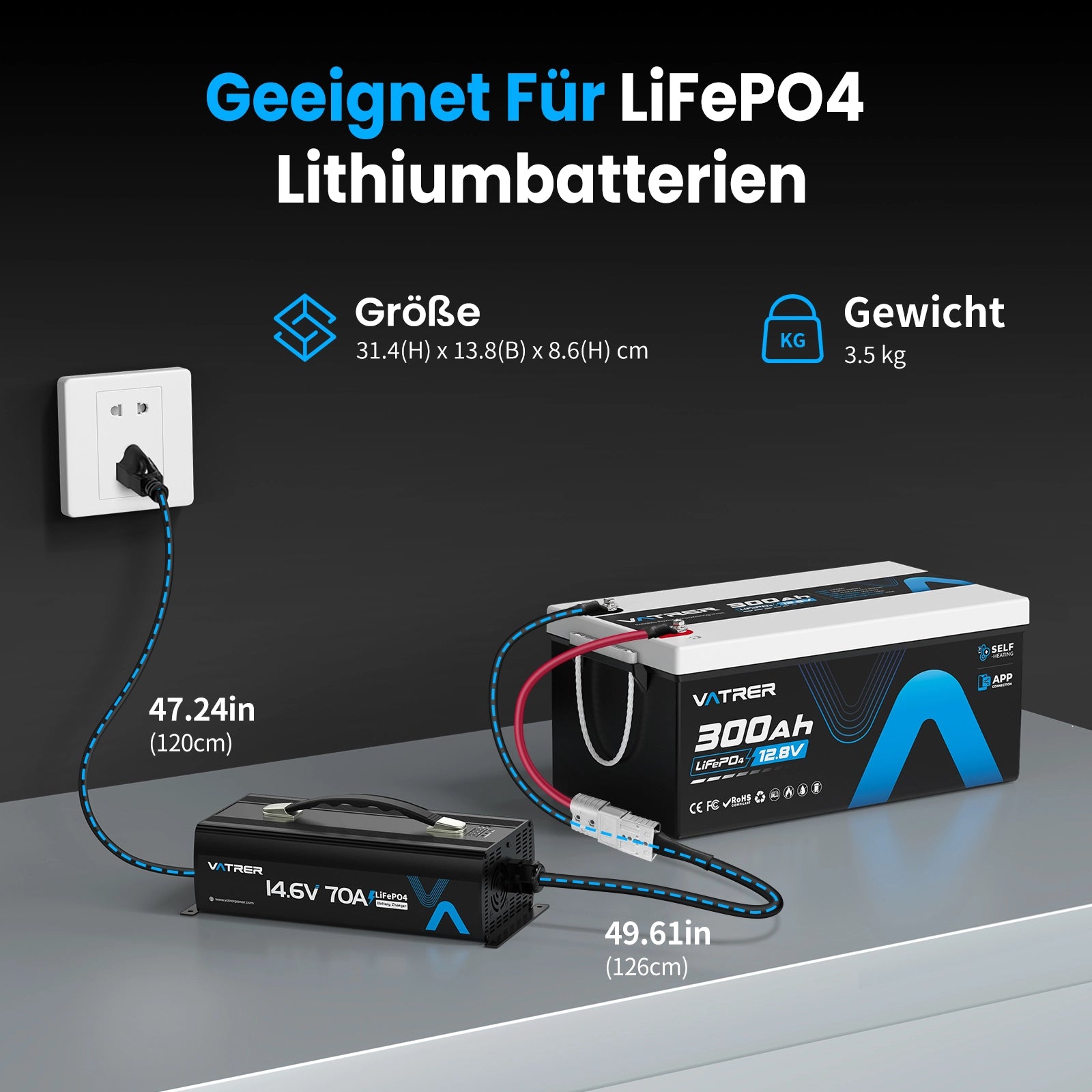

Dimensions (mm) | 314(L) × 138(W) × 86(H) |
Net Weight | 3.5Kg |
