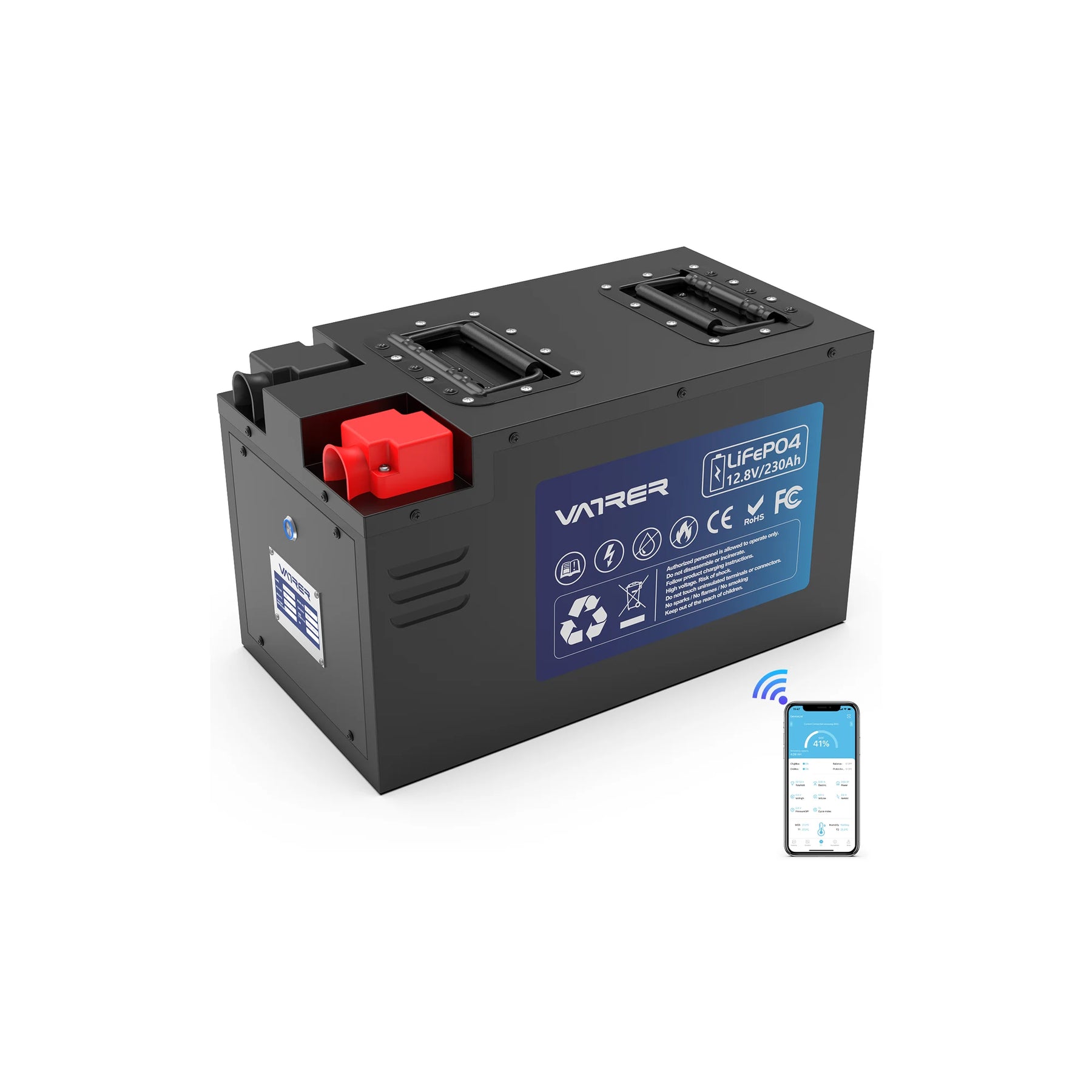

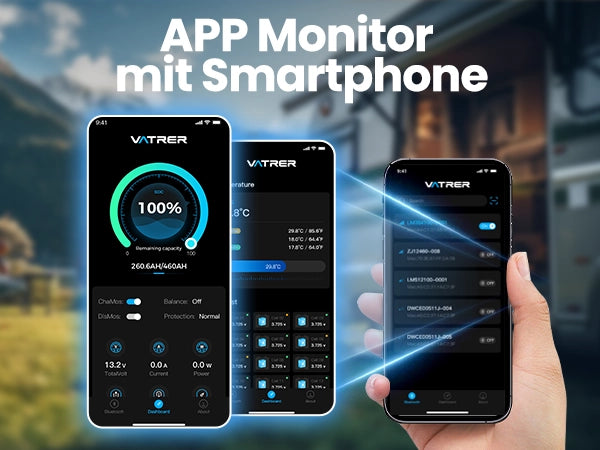

Vatrer 12V 230AH RV Battery Bluetooth Version, 200A BMS, Low Temp Cutoff, LiFePO4 Chemistry EU

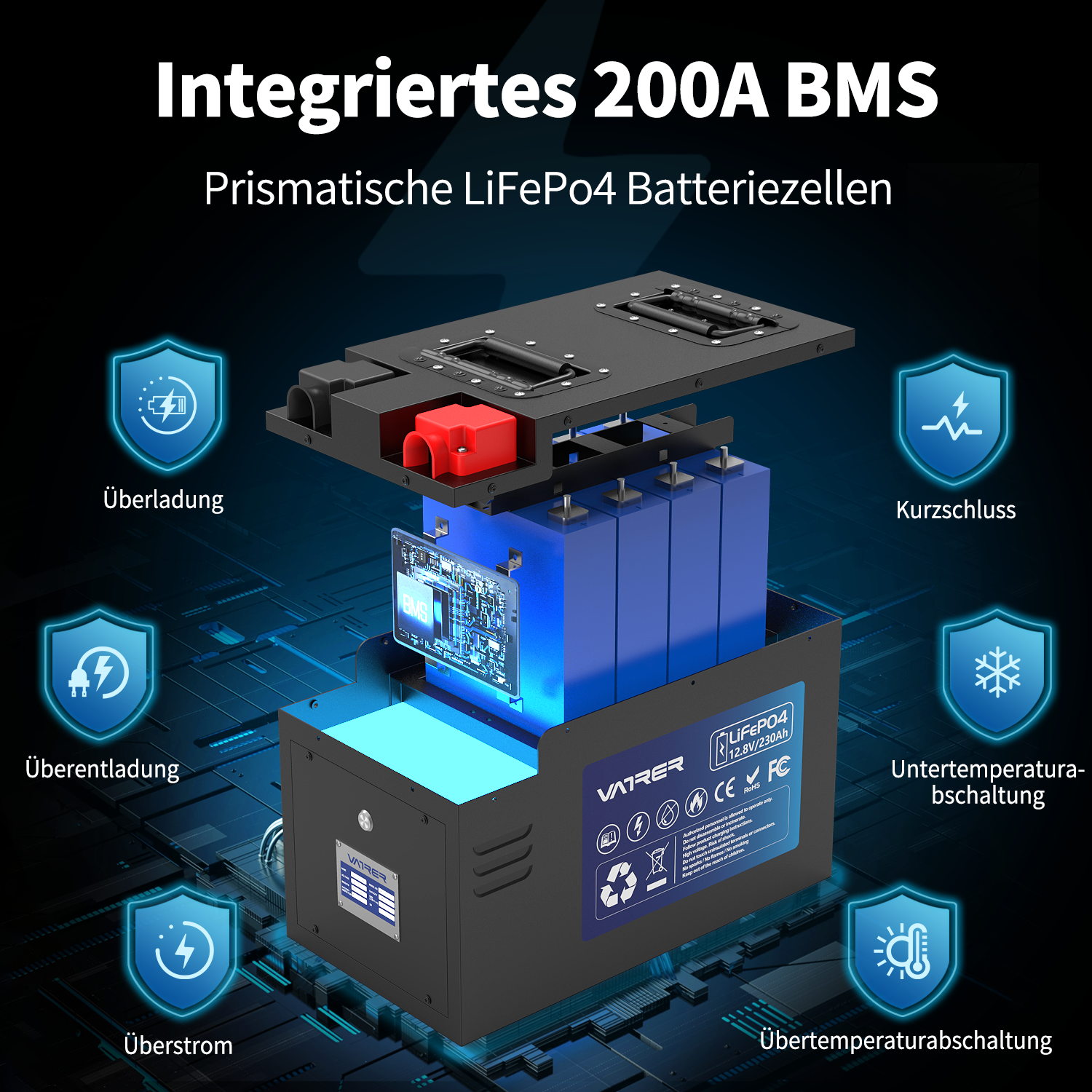

【Upgraded 200A BMS and Low Temp Cutoff 】After years of research and testing, we have adopted Lifepo4 cells that are fitter for RV/camper use, giving the battery powerful and stable performance throughout every cycle. Make your journey trouble-free. And Low temp cutoff protection prevents battery damage in a low-temperature environment.

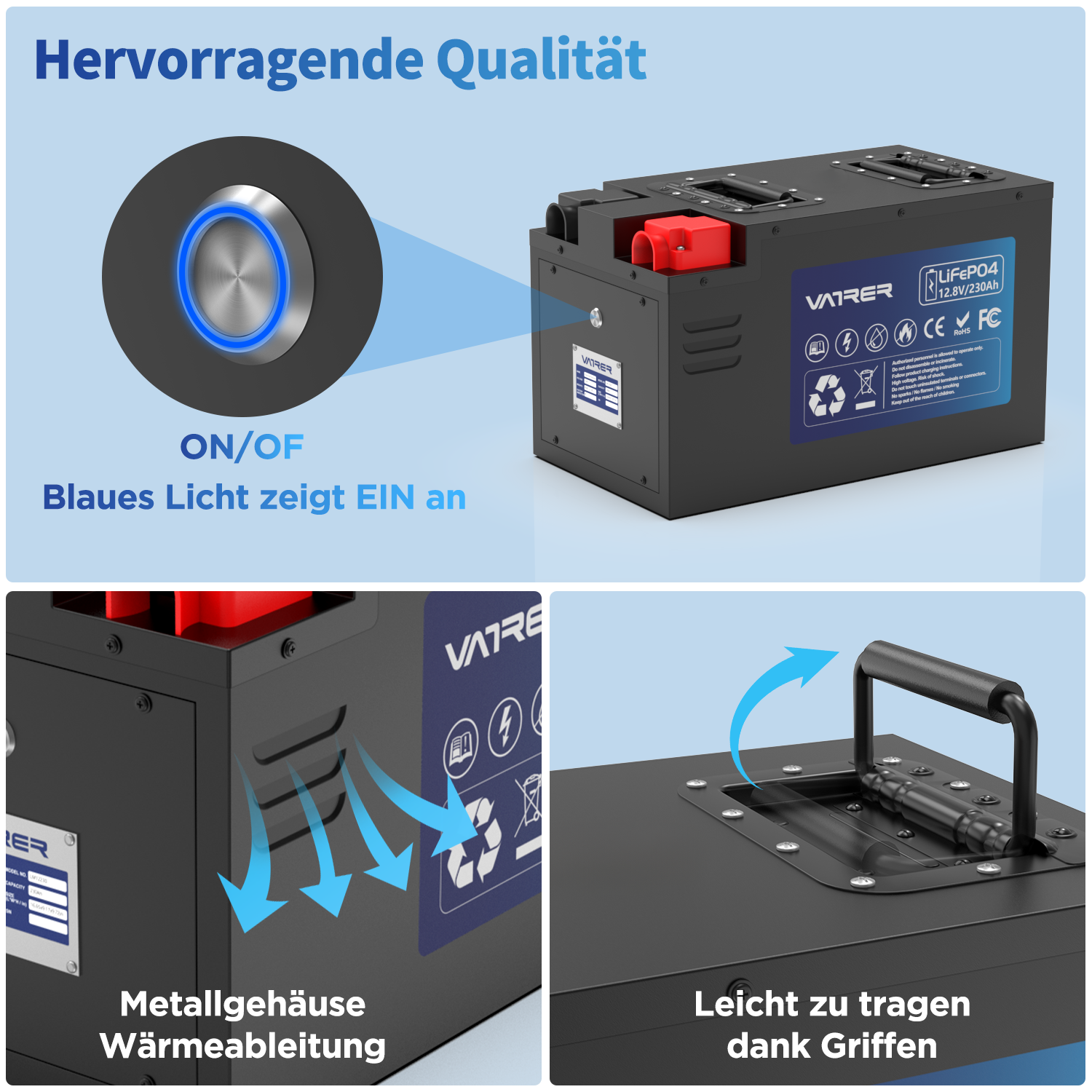

【All-New Design, All-Round Safety】The 230Ah lithium RV battery is wear-resistant fireproof, shockproof, and durable thanks to the newly adopted high-quality SPCC battery case, and we optimize the internal layout and construction. The battery also comes with a main switch to turn it on or off at the touch of a button. And there is a thermometer and hygrometer on the top to display the battery temperature and humidity in real-time.

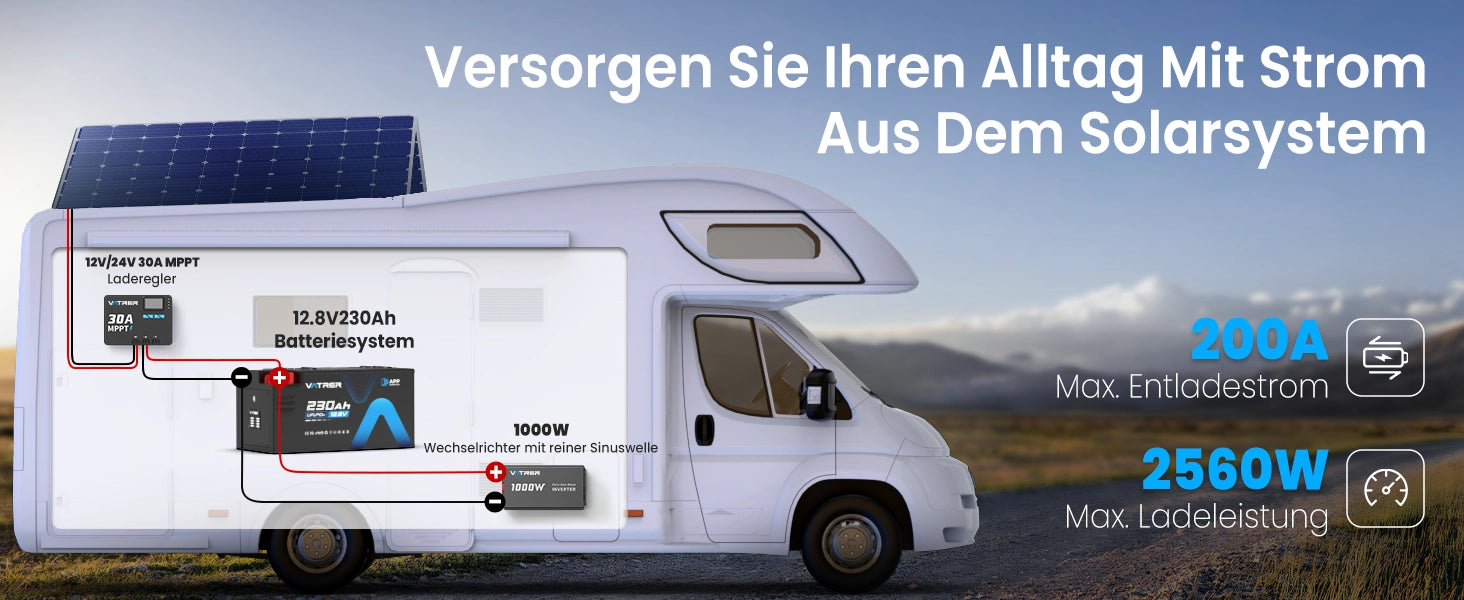

【200Amps Continuous Discharge】230Ah RV LiFePO4 Battery’s dimension is L16.65in*W 9.17in*H 9.72in but with a capacity of 230Ah, equipped with a 200A continuous discharge current. This battery can power high-power appliances such as air conditioners, TVs, and ovens this battery ensures sustained power support for your RV, making your camping and road trips more comfortable and stress-free.

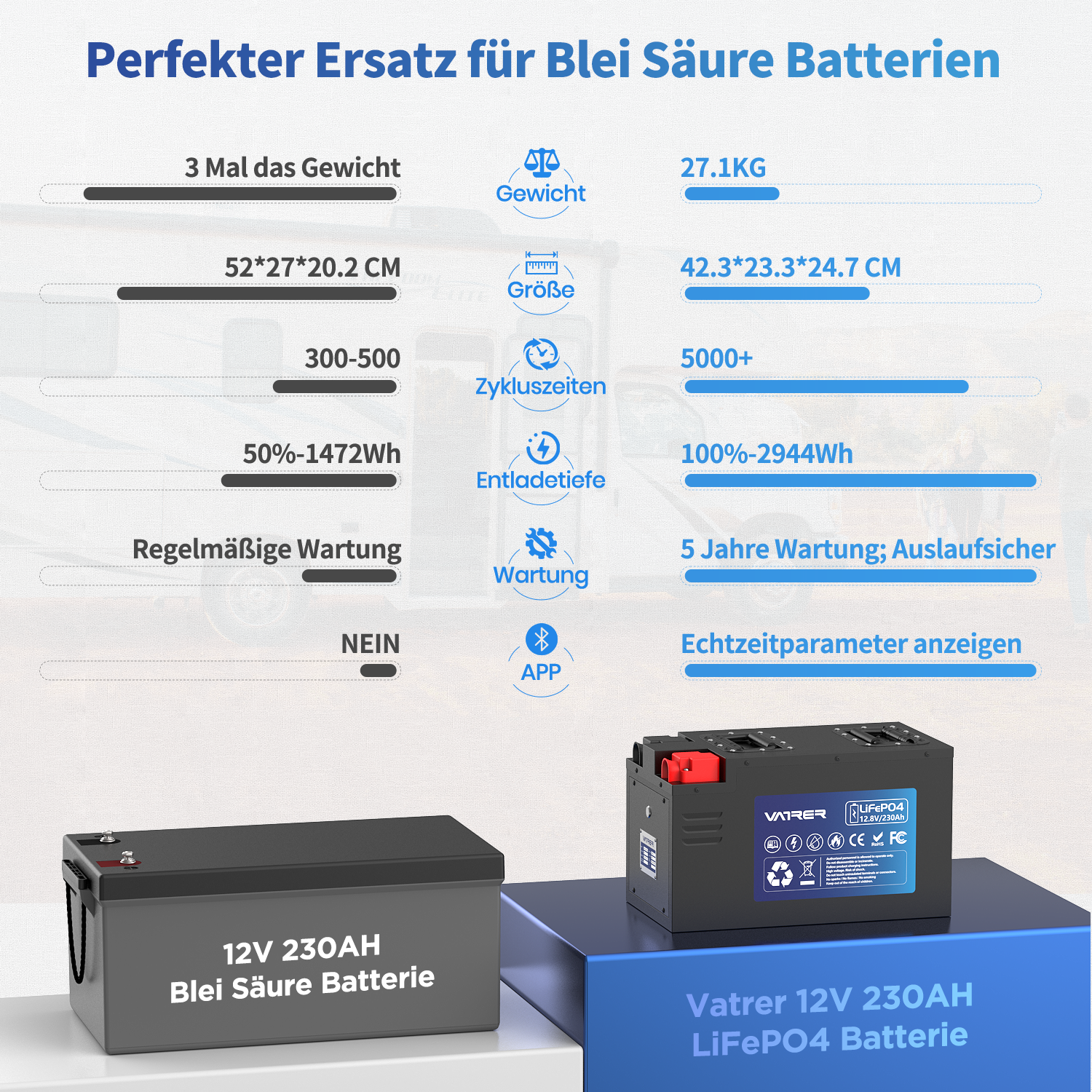

【Compact in Size Max on Power】Vatrer 12V 230Ah LiFePO4 RV battery is equivalent to the energy of 3 x 100Ah batteries, but took up only 0.6ft³ of space and is smaller than 3x100ah batteries. And It will be easier to maintain and install without the need for excessive wires and money. Helps you save money and space.
【Max. 51.2V 920Ah Expandable Capacity & 5-Year Warranty】 Vatrer Power Lithium Iron Phosphate battery 12V 230Ah LiFePO4 batteries could be expanded to max. 4P4S as a 51.2V 920Ah battery system to get 40.96kW output power and 47.1kWh usable energy.Vatrer Power provides a five-year warranty for all batteries. 24hrs friendly and professional customer support, any question please feel free to contact us.
Runtime Calculation
Safety Certifications
Specification | Value |
---|---|
Battery Model | LiFePO4 Battery 12.8V 230Ah |
Nominal Voltage | 12.8V |
Charge Voltage | 14.2V - 14.6V |
Weight | 27.1KG / 59LBs |
Energy | 2944Wh |
Max Continuous Charging Current | 200A |
Max Continuous Discharging Current | 200A |
Recommend Charge Current | 46A (0.2C) |
Operating Temperature Range | Charge: 0°C to 45°C (32°F to 113°F) Discharge: -20°C to 55°C (-4°F to 131°F) Storage: -10°C to 50°C (14°F to 122°F) Low temp cut off protection (Charge): 0°C ± 4°C (32°F ± 7.2°F) |
Max Load / Inverter Power | 2560W |
Terminal Type | M8 |

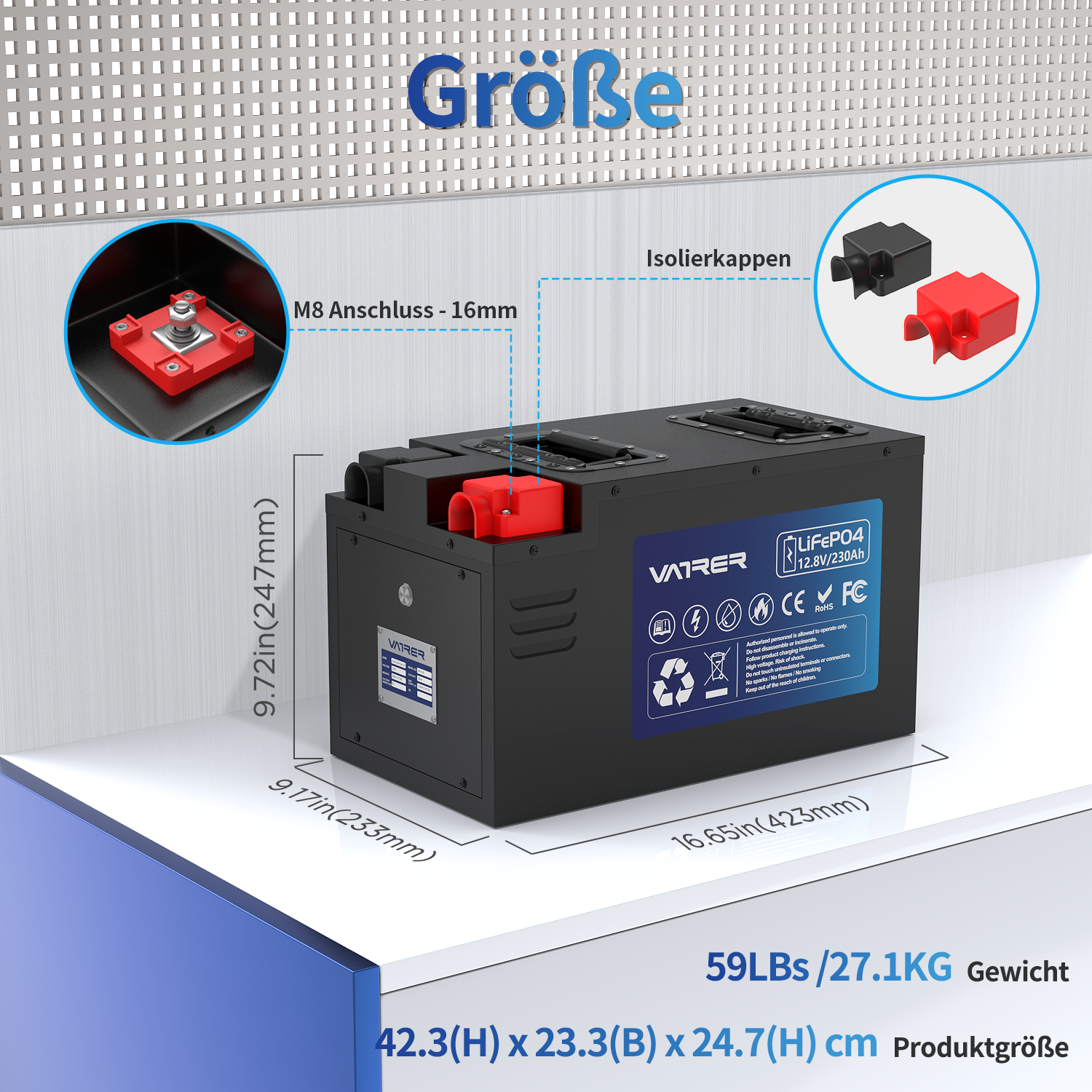

Dimension | 423×233×247 mm 16.65x9.17x9.72 inch |
Cycle Life | ≥5000 Cycles |
Accessories | 1*12V 230Ah RV Batteries, 2*M8 Terminals, 2*Caps, 1*Manual |
Series/Parallel Connections | 4 in Series, and no more than 10PCS in Parallel |

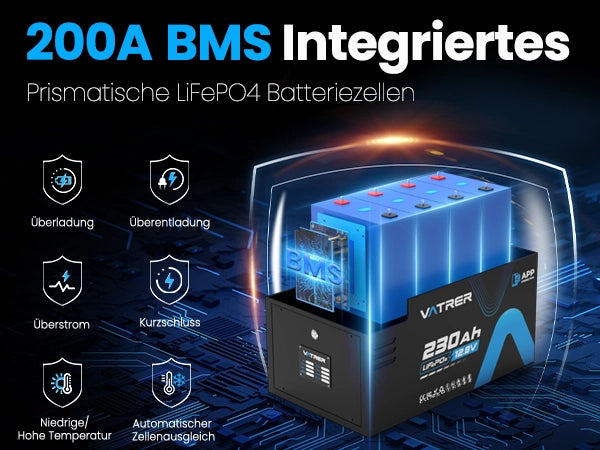

No, Vatrer LiFePO4 lithium batteries are not intended to be used as starting batteries but for energy storage. Please do not use them to start any devices. Yes, Vatrer Power RV Batteries support series and parallel connections. Yes, for a single battery unit, the BMS will perform self-balancing for its cells when being charged. Yes, for a single battery unit, the BMS will perform self-balancing for its cells when being charged. Yes, LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. Vatrer Power lithium cells are UL certified for the highest safety and sustainability standards. All Vatrer LiFePO4 batteries come with an internal Battery Management System that protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, Vatrer LiFePO4 Lithium batteries have been tested to be free from the risk of fire and electric shock in harsh environments. It is recommended to store Vatrer LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 3 months. Recommended storage environment: 10℃~35℃ (50℉~95℉), 45%RH~75%RH.Q1: Can I use Vatrer Power LiFePO4 Lithium RV Battery as starting batteries?
Q2: Does Vatrer 12V 230Ah RV battery support series and parallel connections?
Q3: Does the Vatrer Power 12V 230Ah RV Battery's BMS have built-in cell-balancing functions?
Q4: Does the BMS have built-in cell-balancing functions?
Q5: Are Vatrer Power LiFePO4 lithium RV batteries safe?
Q6: How do I store Vatrer Power LiFePO4 lithium RV batteries?
