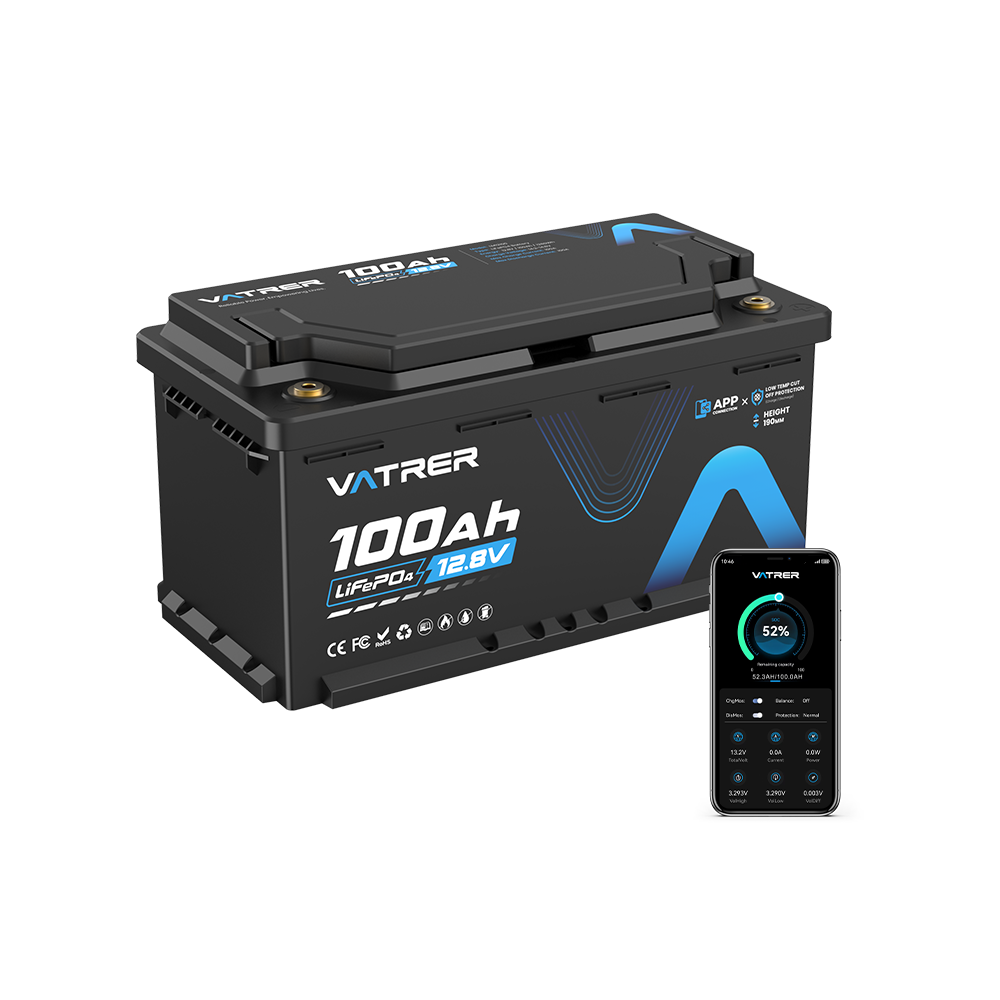

Vatrer 12V 100Ah H190 Bluetooth LiFePO4 battery with 188mm height 1280Wh 5000+ cycles Lithium battery with 100A Smart BMS Low temperature protection Ideal for motorhomes & off-grid applications
【Only 188mm Height】This 12V 100Ah H190 LiFePO4 battery is a space-saving battery. With dimensions of L358 x W177 x H188 mm, it is perfect for placement under a caravan seat, and the battery weighs only 1/3 of a lead-acid battery.
【EVE A-Class Cell】The 12V 100Ah Bluetooth H190 lithium battery uses EVE A-class cells and has a lifespan of 10 years, which is three times longer than that of lead-acid batteries of the same type. With support for over 5000 cycles, it is a perfect replacement battery for lead-acid, gel, and AGM batteries!
【Smart Bluetooth 5.0 】With the VATRER app, you can monitor battery information (SOC, voltage, current, capacity, power, battery temperature, pressure difference, cycle count, etc.) in real-time and check the charge/discharge/protection status of your LiFePO4 battery anytime and anywhere! In case of battery overcharging, the app displays the corresponding error status, allowing you to make timely adjustments.
【Flexible Parallel/Series Connection】The 12V 100Ah LiFePO4 battery can support up to 4 series and 4 parallel connections, with a maximum output energy and power of 20.48kWh and 20.48kW, making it an ideal and reliable energy storage solution for on-the-go applications. Perfect for motorhomes, caravans, energy storage at home, emergency power supply, and off-grid applications!
【Low-Temperature Protection & 100A BMS】Low-temperature protection prevents battery damage in low-temperature environments. The battery can discharge at temperatures ranging from -20°C to 60°C. The smart 100A BMS protects the LiFePO4 battery from overcharging, over-discharging, overheating, overcurrent, and short circuits.
【No Explosion Risk 】The stable chemical structure of lithium iron phosphate ensures that LiFePO4 batteries do not burn or explode even under high temperatures, short circuits, impacts, and drops. Moreover, it contains no heavy metals or rare metals, making it more environmentally friendly and referred to as a green battery.
【Usage Notes】1: This battery is an energy storage battery, not a starter battery. 2: The effective range of Bluetooth is 10 meters without obstacles. 3: To use the battery correctly, please read the instructions carefully. If you have any uncertainties regarding the operation, feel free to contact us. 4: The shipping time is 3-5 working days. If there are any irregularities in logistics, please contact us for inquiries.
Pack:1 Pack($249.99)
Quantity:
Subtotal:
30 Day Price Guarantee
Runtime Calculation
Please enter the power value.
Safety Certifications
| Specification | Value |
|---|---|
| Battery Model | LiFePO4 Battery 12.8V 100Ah |
| Nominal Voltage | 12.8V |
| Capacity | 100Ah |
| Charge Voltage | 14.2V-14.6V |
| Weight | 10KG/22LB |
| Energy | 1280Wh |
| Max Continuous Charging Current | 100A |
| Max Continuous Discharging Current | 100A |
| Recommended Charge Current | 20A (0.2C) |
| Max Load/Inverter Power | 1280W |
| Operating Temperature Range | Charge: 0°C to 50°C (32°F to 122°F) Discharge: -20°C to 60°C (-4°F to 140°F) Storage: -10°C to 50°C (14°F to 122°F) Low temp cut off protection (Charge): 0°C±4°C (32°F±7.2°F) Low temp cut off protection (Discharge): -20°C±4°C (-4°F±7.2°F) |
| Waterproof Class | IP65 |
| Terminal Type | M8 |
| Dimensions | 358x177x188 mm / 14.09*6.97*7.4 inch |
| Cycle Life | >=5000 Cycles |
| Series/Parallel Connections | 4 in Series, and no more than 10PCS in Parallel |
Yes, of course! Our BMS has a low temperature protection cut-off function to safeguard your battery against low temperature damage and extend its lifespan.
Low temp cut off protection (Charge): 0℃ ± 4℃ (32°F ± 7.2°F)
Low temp cut off protection (Discharge): -20℃ ± 4℃ (-4°F ± 7.2°F)
We recommend using a lithium iron phosphate 4-string (14.6V) charger to efficiently charge the battery. However, there are alternative methods:
Scheme 2: You can charge the battery using photovoltaic solar panels through an MPPT charger.
Scheme 3: You can charge the battery pack using an inverter with a built-in AC to DC charging function.
A BMS, or Battery Management System, is a vital component of our LiFePO4 battery. It performs several functions:
a. It safeguards the battery and the user by shutting off the battery in cases of low or high voltage, low or high temperatures, and system shorts.
b. Our BMS maintains cell balance within the battery pack. During each charge cycle, it reduces the charging rate in cells that have reached their capacity, allowing other cells to catch up. This ensures overall balance, quality, and efficiency of the battery pack.
Our LiFePO4 batteries provide over 2000 cycles at 100% depth of discharge (DoD), and they can even reach over 5000 cycles at 80% DoD. Compared to standard lead-acid batteries, LiFePO4 batteries have a service life that is 8 to 10 times longer.
Yes, our LiFePO4 batteries are designed with safety in mind:
- Manufactured with Automotive Grade LiFePO4 Cells for higher energy density, stability, and power.
- The stable chemical structure of LiFePO4 ensures they do not burn or explode, even under high temperatures, short circuits, impacts, or drops.
- Our batteries have undergone UL Testing and are certified for their safety.
- They are environmentally friendly, containing no heavy metals or rare metals.
- The built-in Battery Management System (BMS) provides protection against overcharge, deep discharge, overload, overheating, short circuits, and low self-discharge rate.
We apologize, but our LiFePO4 batteries are not suitable for jump-starting vehicles. However, they can serve as reliable power supplies for automobiles. You can recharge your car using a Jackery power supply cord, which is available for separate purchase.
