Vatrer 36 Volt 105AH Lithium Golf Cart Battery, 200A BMS, 4000+ Cycles, Max 7.68kW Power Output Lithium Battery
【High Energy Capacity and Power Output】The battery has a capacity of 105Ah and a maximum power output of 7.68kW, making it suitable for powering golf carts across various terrains and for extended periods.
【Long Cycle Life】With over 4000 recharge cycles, this battery provides exceptional longevity, significantly outperforming traditional lead-acid batteries, which typically last between 300 to 500 cycles.
【Built-In 200A BMS】The integrated 200A Battery Management System protects against overcharging, over-discharging, over-current, and extreme temperature conditions, thereby enhancing both safety and durability.
【Lightweight Design】Being approximately 50% lighter than equivalent lead-acid batteries, this battery's installation and handling are significantly easier, thus improving the overall user experience.
【Real-Time Monitoring】It includes a 2.8-inch touchscreen LCD and is compatible with a mobile app for real-time monitoring of battery status, which promotes user convenience and efficient management.
【Fast Charging】It comes with a 43.8V 25A charger that ensures quick and efficient charging, reducing downtime and enhancing availability.
【Extended Warranty and Support】The battery is offered with a 10-year warranty, ensuring long-term reliability and enhancing customer satisfaction.
【Tax-Free and Free Shipping in the US】This adds further value by providing cost savings through tax-free purchases and free shipping within the US.
$200 OFF EACH
CODE:DEALPRICE
PACK :1 PACK($1,599.99)
Quantity:
Subtotal:
Free Tax
Exclusion of Hawaii (HI), Alaska (AK), and Puerto Rico (PR)
Runtime Calculation
Please enter the power value.
Safety Certifications
200%
2-3x The Power As A Lead Acid Battery
1/3
1/3 the Weight For Equal Usable Power
5X
Charges Up To 5X Faster
100%
100% Depth SOC & DOD
10-Year
10-Year Warranty
High Performance for Unmatched Golfing Adventures
Transform your golfing experience with the High Performance 36V Golf Cart Lithium Battery Conversion Kit. This powerful 36V 105Ah LiFePO4 battery delivers an impressive 7.68kW of power and a substantial 4.032kWh capacity, ensuring optimal performance and durability for your golf cart. With over 4000 cycles and a maximum discharge rate of 200A, this battery is engineered to meet the demands of avid golfers who seek reliability and efficiency. Say goodbye to range anxiety and hello to worry-free golfing adventures, knowing you have the power to go the distance.
Eliminate Range Anxiety with Extended 50-Mile Range
Imagine cruising the golf course for up to 50 miles on a single charge! The Vatrer 36V lithium battery kit is designed to provide you with an extended range, allowing you to enjoy longer rounds without the fear of running out of power. Whether you're playing a full 18 holes or exploring the scenic routes of your favorite course, this battery ensures you can focus on your game without interruptions. Experience the freedom of extended golfing adventures and make every moment count on the course.
Advanced Safety Features for Peace of Mind
Safety is paramount when it comes to powering your golf cart, and the Vatrer 36V lithium battery conversion kit excels in this area. Featuring EVE Grade A Prismatic LiFePO4 cells and a built-in 200A Battery Management System (BMS), this battery protects against overcharging, over-discharging, extreme temperatures, and current issues. With a continuous discharge rate of 200A and the ability to peak at 400A for 35 seconds, you can trust that this battery will deliver reliable power for all your golfing needs. Enjoy peace of mind knowing that your battery is equipped with advanced safety features to keep you and your cart secure.
Efficient Design with Integrated Bracket and Ventilation
The Vatrer 36V golf cart battery is not only powerful but also designed for efficiency and convenience. It comes with a specialized bracket that securely holds the battery in place, ensuring seamless operation during your golfing adventures. The integrated ventilation system enhances safety by preventing overheating, while the portable design, complete with built-in handles and screw holes, makes installation and transport a breeze. Enjoy a worry-free golfing experience with a battery that is as easy to handle as it is powerful.
Real-Time Monitoring for Optimal Performance
Stay in control of your battery's performance with real-time monitoring capabilities. The Vatrer 36V lithium golf cart battery features adjustable charge and discharge settings, along with a display that shows voltage cell differences. This allows you to optimize performance and enhance the efficiency of your golf cart's power source. With smart one-touch operation, you can easily manage your battery and ensure it operates at its best, giving you the confidence to tackle any course.
Portable, Easy Installation, and Efficient Ventilation
This battery's portable design includes built-in handles and screw holes for easy carrying and installation. It also features a ventilation system for enhanced safety and smart one-touch operation for seamless usage.
Temperature Protection for Safe Operation
Designed to perform under extreme conditions, this 36V golf cart battery includes advanced temperature protection features. It has cut-offs for low temperatures during charging (0℃/32°F) and discharging (-20℃/-4°F), as well as for high temperatures during charging (65℃) and discharging (75℃). This ensures safe operation, allowing you to enjoy your golfing experience regardless of the weather.
Versatile Compatibility for All Street-Legal Carts
The Vatrer 36V lithium battery is suitable for a variety of street-legal vehicles, including golf carts, ATVs, and tour cars. Whether you own a Club Car, EZ GO, or Yamaha golf cart, this battery provides reliable and efficient energy to power your adventures.
36v Golf Cart Battery Wring Diagram
What's in the 36 volt lithium battery conversion kit?
 |
Golf Cart Battery *1 |  |
LiFePO4 Charger *1 |
 |
2.8 inch Touchable LCD Screen and Cable |  |
User manual |
 |
Adapter Connector Cable *1 |  |
Adapter Connector Cable *1 |
 |
Protective Covers *2 |  |
M8 Terminal bolts |
|
Golf Cart Battery *1 |
LiFePO4 Charger *1 |
|
2.8 inch Touchable LCD Screen and Cable |
User manual |
|
Adapter Connector Cable *1 |
Adapter Connector Cable *1 |
|
Protective Covers *2 |
M8 Terminal bolts |
| Specification | Value |
|---|---|
| LiFePO4 Battery | 38.4V 105Ah |
| Nominal Voltage | 38.4V |
| Charge Voltage | 43.8V |
| Weight | 37.78KG / 83.3 lbs |
| Energy | 4032Wh |
| Max Continuous Charging Current | 100A |
| Max Continuous Discharging Current | 200A (Peak 400A 35s) |
| Recommend Charge Current | 55A |
| Max Load / Inverter Power | 7680W |
| Discharge Cut-off Voltage | 30V(2.5V/Cell) |
| Operating Temperature Range |
Charge: 0°C to 45°C (32°F to 113°F) Discharge: -20°C to 60°C (-4°F to 131°F) Storage: -10°C to 50°C (14°F to 122°F) Low temp cut off protection (Charge): 0°C ± 4°C (32°F ± 7.2°F) |
| Waterproof Class | IP65 |
| Dimension | 425*318*243 mm / 16.73*12.52*9.57 inch |
| Cycle Life | ≥4000 Cycles |
| Safety Features | BMS, Over Charge/Discharge, Low/High Temp Cut-off, Over Current, Short Circuit |
| Accessories | 1x38.4V 105Ah Golf Cart Battery, 1x 43.8V 25A LiFePO4 Charger, 1x2.8in LCD Screen, Communication Cables |
The connections on our 36V battery are crimped and have a very good internal construction. They are secured with nuts to the terminals for both positive and negative connections. The charger connects to the same lug with the same positive and negative terminals.
The golf cart battery has a continuous discharge current of up to 200A with a peak discharge current of 400A for a duration of 35 seconds.
To set up Bluetooth connectivity and monitor the charging status of your 36 volt lithium golf cart battery, please follow these steps:
- Search for the "xiaoxiang" app on your smartphone and install the xiaoxiangelectric App.
- Open the app and allow it to access Bluetooth on your device. You can choose to register an account or use guest mode to proceed.
- Once inside the app, you will find detailed instructions on how to connect your battery via Bluetooth and monitor its charging status.
Additionally, the charger will have a green light that flashes to indicate that it is charging. You can also check the display on the charger, which will show the charging current.
While we do not provide a specific matching mounting bracket for the golf cart, we include some screws with openings on the bottom of the battery. These screws can be used to securely hold the battery in place during installation.
The battery comes with a 43.8V 25A special charger included, so you do not need to purchase a new charger separately. This charger is specifically designed to properly charge the 38.4V 100Ah battery.
For a 36-volt golf cart, if you choose to use a Vatrer brand lithium battery, you only need one battery. Vatrer batteries are designed with an integration of 12 EVE Lithium Iron Phosphate cells, which manage the voltage differential between cells internally, avoiding the complexities and potential issues associated with connecting multiple batteries in series or parallel. This design not only simplifies installation but also enhances the system's reliability and efficiency, significantly easing maintenance efforts. Thus, for your 36-volt golf cart, a single Vatrer lithium battery is sufficient to meet your needs.
The battery comes with a 10-year warranty, covering defects in materials and workmanship.
Yes, LiFePO4 batteries are known for being more eco-friendly compared to lead-acid batteries, as they contain no hazardous materials and have a longer lifespan, reducing waste.
While primarily designed for golf carts, its high capacity and power output make it suitable for other applications that require similar power needs. However, it's important to check compatibility with other devices.
Yes, technical support is available to assist with any issues or questions regarding the battery's use and maintenance.
The lifespan of this 36 volt lithium battery can vary based on several factors including usage patterns, maintenance, and environmental conditions.
- Average Lifespan: This battery can last over 10 years with proper care and usage. This assumes that the battery is regularly charged and kept in optimal conditions, avoiding extreme temperatures and deep discharges.
- Range per Charge: On a single charge, this battery can typically power a golf cart for up to 50 miles. This range can vary slightly depending on factors such as the weight of the vehicle, terrain, and driving style.
- Cycle Life: This battery often have a cycle life of over 4000 cycles. A cycle is counted every time the battery is discharged and then recharged back to full capacity. A higher cycle life indicates a longer service life under normal conditions.
- Ideal for Golf Carts: Given its long lifespan, significant range per charge, and extensive cycle life, this battery is an excellent choice for golf carts. It offers a reliable power source that can handle frequent use typical in golf course environments.
These characteristics make this 36 volt lithium battery a robust and efficient option for powering golf carts, ensuring both reliability and performance over an extended period.
Vatrer Golf Cart Lithium Batteries for More Benefits

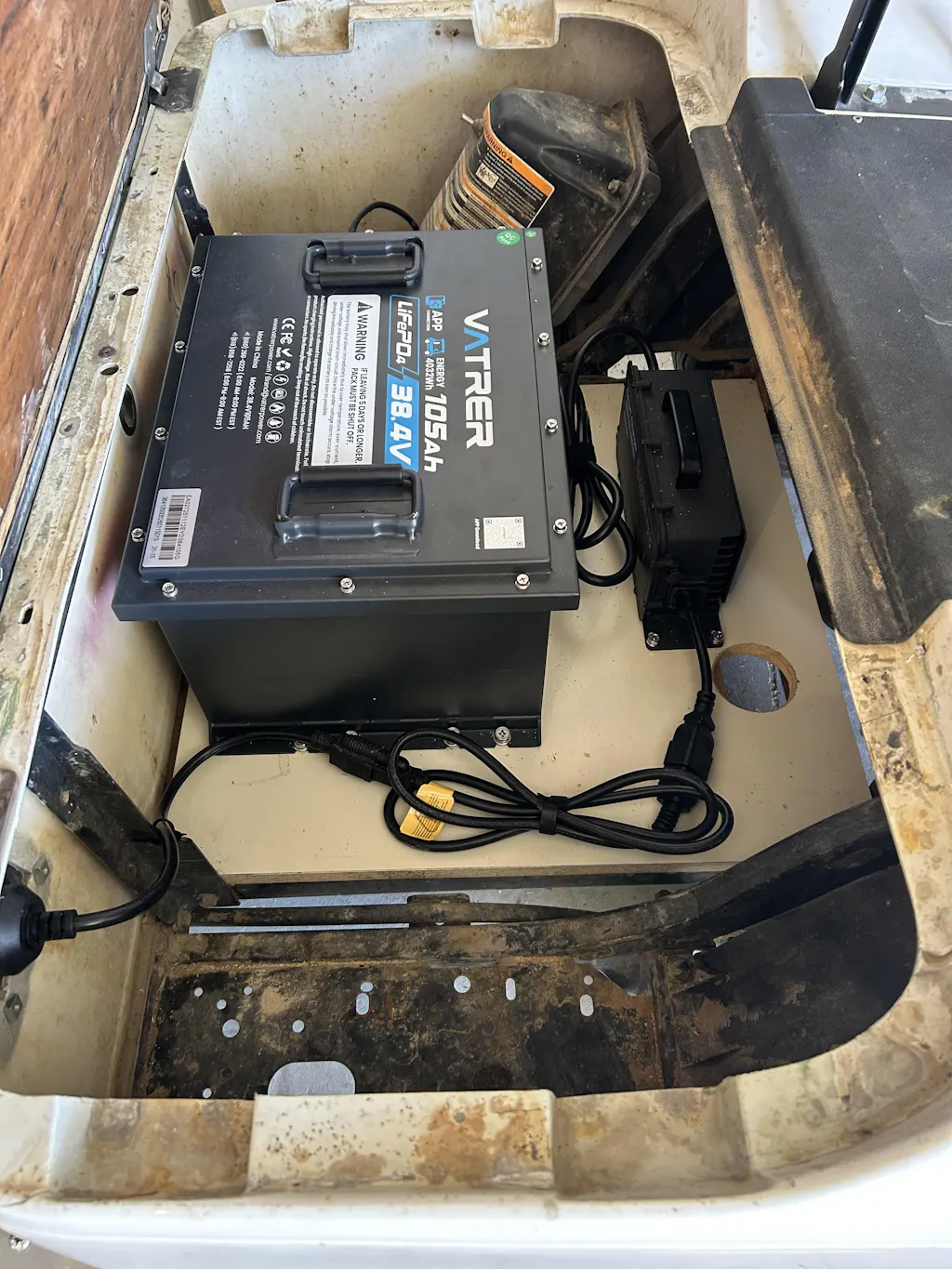

Authentic User Installation Photos
